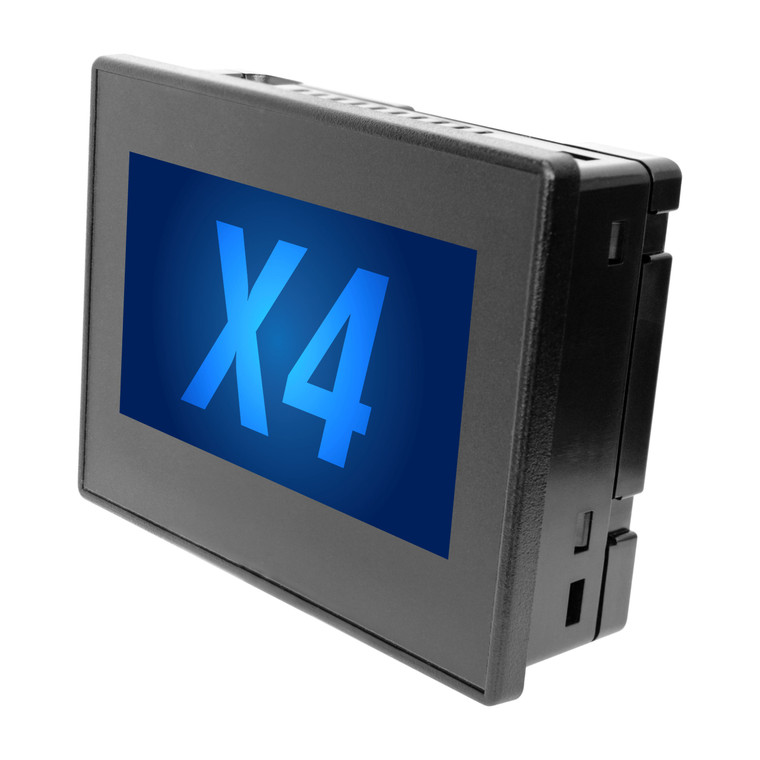

Horner Automation HE-X4A-441 X4 Controller 4.3", 12 DC In, 12 DC Out, 4 Analog In (mA/RTD), 2 Analog Out (mA), WebMI License unlimited preloaded
Horner Automation
$914.00
X4 Controller 4.3", 12 Dc In, 12 Dc Out, 4 Analog In (Ma/Rtd), 2 Analog Out (Ma), Webmi License Unlimited Preloaded
- Series:
- X4 (Micro OCS)
- Product Type:
- All-in-One PLC/HMI Controller
- DC In:
- 12
- DC Out:
- 12
- HS In:
- 4
- HS Out:
- 2
- Analog In:
- 4 (4-20mA)
- RTD Support:
- PT-100 (-50 to 200C)
- Analog Out:
- 2 (4-20mA)
- Output Type:
- Sourcing
- Ladder Logic Memory:
- 256 kB
- Logic Scan Rate:
- 0.4 mS/K
- Removable Memory:
- microSD
- Display:
- 4.3 LCD with LED, 350 nits"
- Resolution:
- 480 x 272
- Ethernet Ports:
- 1 (10/100)
- Serial Ports:
- 1 RS-232 & 1 RS-485
- USB:
- Mini-B
- CAN Networks:
- 1 (CsCAN), 1,640 ft max
- Digital I/O Max:
- 1024 / 1024
- Analog I/O Max:
- 256 / 256
- GP Registers:
- 5000 retentive
- Height:
- 3.53 / 89.76 mm"
- Width:
- 4.69 / 119.18 mm"
- Depth:
- 1.22 / 31 mm"
- Input Voltage:
- 24 +/-20% VDC
- Operating Temperature:
- -10 to 60C
- Humidity (non-condensing):
- 5 to 95%
- Product Certifications:
- CE, cULus
- Environmental Rating:
- UL 50E Type 1, 4x (indoor), 12, 12k, 13
- Special Order Option:
- WebMI Unlimited license pre-loaded
- Datasheet:
- View
