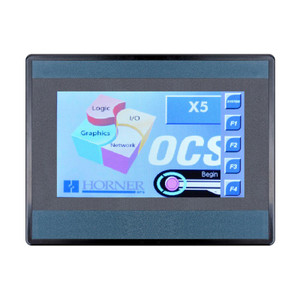

Horner Automation HE-X5-440 X5 Controller 4.3", 4 DC In, 4 DC Out, 4 Analog In (mA/V), With SAE J1939
Horner Automation
$1,225.00
X5 Controller 4.3", 4 DC In, 4 DC Out, 4 Analog In (mA/V), With SAE J1939
- Series:
- X5 (Micro OCS)
- Product Type:
- All-in-One PLC/HMI Controller
- DC In:
- 4
- DC Out:
- 4
- HS In:
- 4 @ 500kHz
- HS Out:
- 2 (PWM/Stepper)
- Analog In:
- 4 (12-bit)
- Ladder Logic Memory:
- 1 MB
- Logic Scan Rate:
- 0.04 mS/K
- Removable Memory:
- microSD
- Display:
- 4.3 TFT Color"
- Resolution:
- 480 x 272
- Ethernet Ports:
- 1
- Serial Ports:
- 1 RS-232 & 1 RS-485
- USB:
- USB A & Mini-B
- CAN Networks:
- Standard CsCAN (CANopen/DeviceNet/J1939 optional), 1,640 ft max
- Digital I/O Max:
- 2048 / 2048
- Analog I/O Max:
- 512 / 512
- GP Registers:
- 8,912 (1,024 retentive)
- Height:
- 3.79 / 96.27 mm"
- Width:
- 4.92 / 124.97 mm"
- Depth:
- 1.4 / 35.8 mm"
- Input Voltage:
- 24 VDC
- Operating Temperature:
- -10 to 60C
- Humidity (non-condensing):
- 5 to 95%
- Product Certifications:
- CE, cULus, UL Class 1 Div II
- Environmental Rating:
- IP66, UL Type 3R, 4, 4x, 12, 12k, 13
- Special Order Option:
- SAE J1939 license pre-loaded
- Datasheet:
- View
