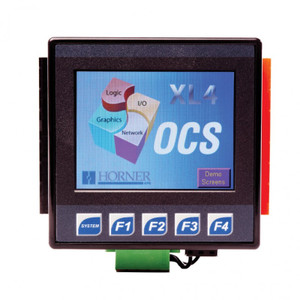

Horner Automation HE-XPC1E4-10 XL4 Prime OCS Controller, 3.5", 24 DC in, 16 DC out, 2 AI, Thermistor

Horner Automation HE-XPC1E4-10 XL4 Prime OCS Controller, 3.5", 24 DC in, 16 DC out, 2 AI, Thermistor

Horner Automation
SKU:
HE-XPC1E4-10
$1,949.00
Condition:
New
Current Stock:
Description

The Horner Automation HE-XPC1E4-10 is a 3.5-inch XL4 Prime all-in-one OCS (operator control station) configured with thermistor support on analog inputs 1 and 2, combining PLC logic, HMI, I/O, and networking in a single panel-mount unit. This model provides 24 DC inputs, 16 DC outputs, 2 x 12-bit analog inputs. The XL4 Prime runs a 2 MB logic engine at a 0.02 mS/K scan on a non-volatile system-on-module, so the only battery is a coin cell for the clock.

Direct successor to the discontinued HE-XC1E4-10. Existing Cscape applications transfer to the XL4 Prime without redevelopment.

Specifications

Display3.5in TFT color, 640 nits
Resolution320 x 240 (QVGA)
Application memory2 MB
Logic scan rate0.02 mS/K
Built-in Ethernet ports1
Integrated CAN ports1
Serial ports2 (1 RS-232, 1 RS-485)
Removable mediamicroSD (32GB or larger)
USBUSB 2.0 Host (A) and On-the-Go (mini-B)
Front keys5 (4 function)
Dimensions (H x W x D)96 x 96 x 58 mm (3.78 x 3.78 x 2.26 in)
Max digital I/O2048 in / 2048 out
Max analog I/O512 in / 512 out
Operating temperature-10 to 60 C
CertificationsUL Class I Div II, CE, BABAA compliant
Enclosure ratingUL Type 1, 3R, 4, 4X, 12, 12K, 13

Built-in I/O (HE-XPC1E4-10)

24 DC inputs, 16 DC outputs, 2 x 12-bit analog inputs. Four DC inputs support high-speed counting and two DC outputs support PWM or pulse-train output, expandable over CsCAN, Ethernet, or Modbus with SmartBlock, SmartStix, SmartRail, and OCS-I/O.

Configuration (-10): this part number ships with thermistor support on analog inputs 1 and 2.

Replacing HE-XC1E4-10

This page replaces the discontinued Horner Automation HE-XC1E4-10 (3.5" XL4 series, 24 DC inputs, 16 DC outputs, 2 x 12-bit analog inputs with thermistor support on analog inputs 1 and 2). Horner marked that series mature; the HE-XPC1E4-10 is the direct upgrade with the same 3.5-inch display and identical I/O.

Frequently asked questions

What replaces the Horner HE-XC1E4-10?
The HE-XPC1E4-10 (XL4 Prime) is the direct successor, with the same display size and I/O configuration.

Will my existing Cscape program work?
Yes. XL4 Prime controllers run existing XL Series applications, which transfer without redevelopment.

What is different about the XL4 Prime?
A 2 MB logic engine, a 0.02 mS/K scan, and 100% non-volatile system-on-module memory backed only by a coin-cell clock battery.

Automation Distribution is an authorized Horner Automation distributor serving PA, NJ, NY, DE, MD, DC, and VA. Contact us at 1-888-600-3080 for lead time and volume pricing.
