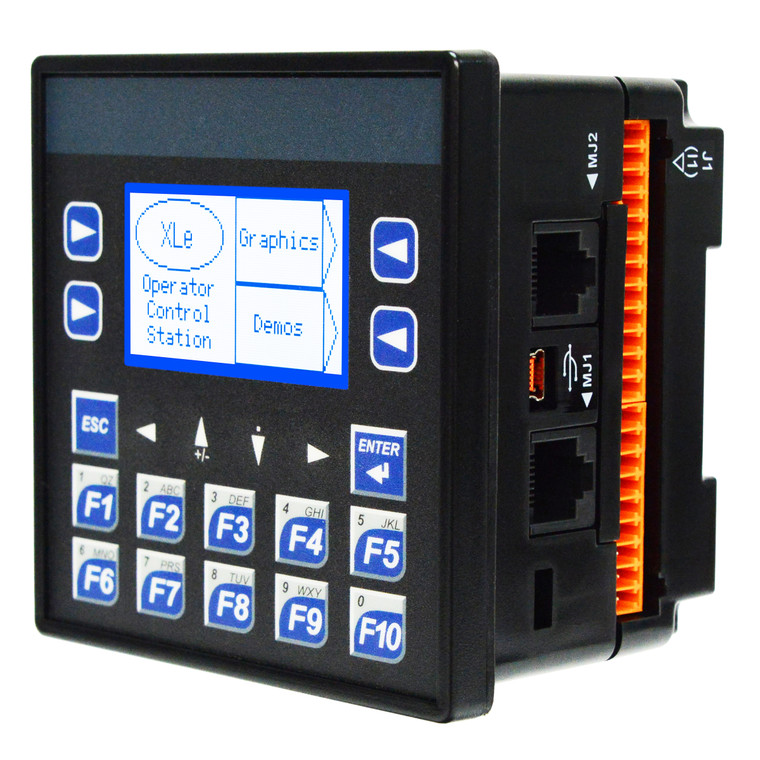

Horner Automation HE-XE1E4-33 XLEe Controller 2.2", 24 DC In, 16 DC Out, 2 Analog In (mA/V), With DeviceNet Master Firmware preloaded and CsCAN
Horner Automation
$1,195.00
XLEe Controller 2.2", 24 DC In, 16 DC Out, 2 Analog In (mA/V), With DeviceNet Master
- Series:
- XLEe (Foundation / XL Series OCS)
- Product Type:
- All-in-One PLC/HMI Controller
- DC In:
- 24
- DC Out:
- 16
- Analog In:
- 2 (12-bit)
- Ladder Logic Memory:
- 256 kB
- Logic Scan Rate:
- 0.7 mS/K
- Removable Memory:
- microSD
- Display:
- 2.2 Transflective LCD monochrome"
- Resolution:
- 128 x 64
- Keypad:
- 20-key (10 function keys)
- Ethernet Ports:
- 1 (10/100 Auto-MDIX)
- Remote Access:
- WebMI, EnvisionRV
- Serial Ports:
- 2x RS-232/RS-485
- USB:
- None
- CAN Networks:
- 1 (CsCAN; CANopen via firmware, DeviceNet -33, J1939 -44), 500m/segment
- Digital I/O Max:
- 2048 / 2048
- Analog I/O Max:
- 512 / 512
- GP Registers:
- 9,999
- Height:
- 3.78 / 96.00 mm"
- Width:
- 3.78 / 96.00 mm"
- Depth:
- 2.264 / 57.5 mm"
- Operating Temperature:
- -10 to 60C (-40C low-temp option)
- Humidity (non-condensing):
- 5 to 95%
- Product Certifications:
- CE, cULus, UL Class 1 Div 2
- Environmental Rating:
- NEMA/UL Type 1, 3R, 4, 4x, 12, 12k, 13, ABS
- Special Order Option:
- DeviceNet Master (CsCAN removed)
- Datasheet:
- View
