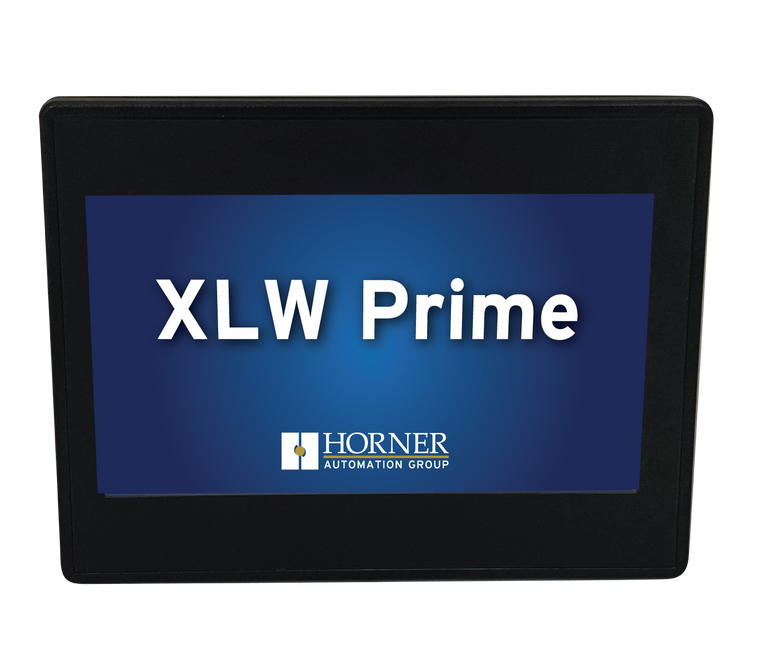

Horner Automation HE-XPLWE3-445 XLW Prime OCS Controller, 7", 12 DC in, 12 DC out, 2 AI, MQTT

Horner Automation HE-XPLWE3-445 XLW Prime OCS Controller, 7", 12 DC in, 12 DC out, 2 AI, MQTT

Horner Automation
SKU:
HE-XPLWE3-445
$2,585.00
Condition:
New
Current Stock:
Description

The Horner Automation HE-XPLWE3-445 is a 7-inch XLW Prime all-in-one OCS (operator control station) configured with MQTT license preloaded, combining PLC logic, HMI, I/O, and networking in a single panel-mount unit. This model provides 12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs. The XLW Prime runs a 1 MB logic engine at a 0.02 mS/K scan on a non-volatile system-on-module, so the only battery is a coin cell for the clock.

Direct successor to the discontinued HE-EXLWE3-445. Existing Cscape applications transfer to the XLW Prime without redevelopment.

Specifications

Display7in widescreen TFT color
Resolution800 x 480
Application memory1 MB
Logic scan rate0.02 mS/K
Built-in Ethernet ports1
Integrated CAN ports1
Serial ports3 (2 RS-232, 1 RS-485)
Removable mediamicroSD (32GB or larger)
USBUSB 2.0 Host (A) and On-the-Go (mini-B)
Front keys0 (touchscreen)
Max digital I/O2048 in / 2048 out
Max analog I/O512 in / 512 out
Operating temperature-10 to 60 C
CertificationsUL Class I Div II, CE, BABAA compliant
Enclosure ratingUL Type 1, 3R, 4, 4X, 12, 12K, 13

Built-in I/O (HE-XPLWE3-445)

12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs. Four DC inputs support high-speed counting and two DC outputs support PWM or pulse-train output, expandable over CsCAN, Ethernet, or Modbus with SmartBlock, SmartStix, SmartRail, and OCS-I/O.

Configuration (-445): this part number ships with MQTT license preloaded.

Replacing HE-EXLWE3-445

This page replaces the discontinued Horner Automation HE-EXLWE3-445 (7" EXLW series, 12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs with MQTT license preloaded). Horner marked that series mature; the HE-XPLWE3-445 is the direct upgrade with the same 7-inch display and identical I/O.

Frequently asked questions

What replaces the Horner HE-EXLWE3-445?
The HE-XPLWE3-445 (XLW Prime) is the direct successor, with the same display size and I/O configuration.

Will my existing Cscape program work?
Yes. XLW Prime controllers run existing XL Series applications, which transfer without redevelopment.

What is different about the XLW Prime?
A 1 MB logic engine, a 0.02 mS/K scan, and 100% non-volatile system-on-module memory backed only by a coin-cell clock battery.

Automation Distribution is an authorized Horner Automation distributor serving PA, NJ, NY, DE, MD, DC, and VA. Contact us at 1-888-600-3080 for lead time and volume pricing.

Additional Information
Series:
XLW Prime (XL Prime OCS)
Product Type:
All-in-One PLC/HMI Controller
DC In:
12
DC Out:
12
Analog In:
2 (12-bit)
Ladder Logic Memory:
2 MB
Logic Scan Rate:
0.02 mS/K
Removable Memory:
microSD (32GB+)
Display:
7 WVGA TFT Color, 420 nits"
Resolution:
800 x 480
Touchscreen:
Resistive
Keypad:
6-key
Built-in I/O Points:
22-44
Expansion I/O:
SmartStix/SmartRail/SmartBlock via CsCAN & Ethernet
Ethernet Ports:
1 LAN (10/100)
Ethernet Protocols:
EtherNet/IP, Modbus TCP, BACnet IP, EGD
IIoT / Remote Access:
MQTT Sparkplug, OCS360, WebMI (HTML5), EnvisionRV
Serial Ports:
3 (RS-232 & RS-485 on MJ1/2; RS-232 or RS-485 on MJ3)
USB:
USB 2.0 A (FLASH to 2TB) & Mini-B (prog/data)
CAN Networks:
1 (CsCAN + CANopen/J1939/DeviceNet Master); 500m/segment
Digital I/O Max:
2048 / 2048
Analog I/O Max:
512 / 512
GP Registers:
50,000
Height:
5.66 / 144 mm"
Width:
7.34 / 187 mm"
Depth:
1.84 / 47 mm"
Operating Temperature:
-10 to 60C
Humidity (non-condensing):
5 to 95%
Product Certifications:
CE, cULus, UL Class 1 Div 2
Environmental Rating:
UL Type 1, 3R, 4, 4x, 12, 12k, 13
Special Order Option:
MQTT Sparkplug license pre-loaded
Datasheet:
View
