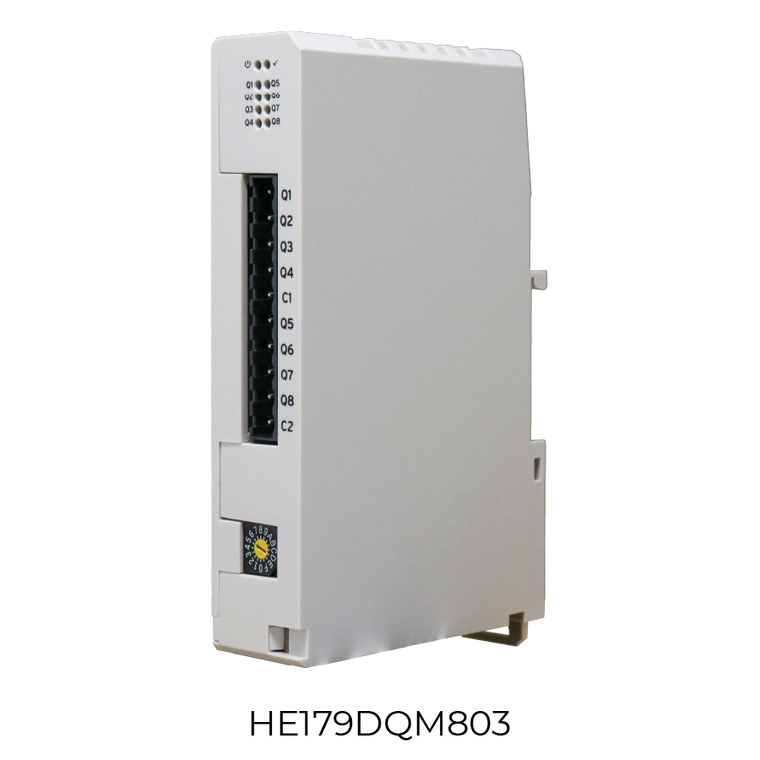

Horner Automation HE179DQM803 Micro I/O 8-Channel Relay Output Module, Selectable CAN ID, 3A/Channel

Horner Automation HE179DQM803 Micro I/O 8-Channel Relay Output Module, Selectable CAN ID, 3A/Channel

Horner Automation
SKU:
HE179DQM803
$99.00
Condition:
New
Current Stock:
Description

The Horner Automation HE179DQM803 is a Micro I/O 8-channel relay output module with a selectable CAN ID. Each channel switches up to 3 amps, with up to 5 amps per common, rated to 30 VDC and 240 VAC. It is a compact way to add isolated relay outputs to a Horner CAN network.

Specifications

Module type Micro I/O relay output
Channels 8 relay outputs
Current per channel 3 A
Current per common 5 A
Contact rating 30 VDC / 240 VAC
CAN ID Selectable

In the box

  • HE179DQM803 Micro I/O 8-channel relay output module
Compatibility and application notes
  • Connects over the Horner CAN network to a Micro OCS, CPU, or CNX base.
  • For a fixed CAN ID with no ID switch or outward port, order the HE179DQM803-A instead.
Automation Distribution is an authorized Horner Automation distributor serving Pennsylvania, New Jersey, New York, Delaware, Maryland, Washington DC, and Virginia. For application support, volume pricing, or lead times on the HE179DQM803, call 1-888-600-3080.
Additional Information
Module type:
Micro I/O relay output
Channels:
8 relay outputs
Current per channel:
3 A
Current per common:
5 A
Contact rating:
30 VDC / 240 VAC
CAN ID:
Selectable
