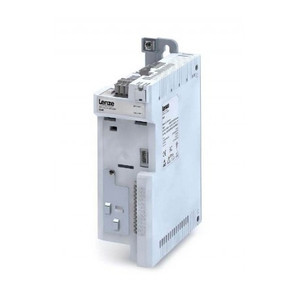

i510 Series
| i510 Series - Lenze | |
| Performance Data | |
| Mains: 1 AC 230 V | 0.25 to 2.2 kW |
| Mains: 1/3 AC 230 V | 0.25 to 2.2 kW |
| Mains: 3 AC 400 V | 0.37 to 2.2 kW |
| Overload Current | Mode S1: 150%, mode S6: 200% |
| Interfaces | |
| Digital inputs/outputs (5/1), analogue inputs/outputs (2/1), relays (optional extension with i550) |
|
| CANopen, Modbus | |
| Approvals | |
| CE, UL, CSA, EAC, RoHS2, IE2 in accordance with EN 50598-2 | |
| Functions | |
| V/f controls (linear, quadratic, VFCeco) Sensorless control for synchronous motors (SLPSM) |
|
| DC braking Brake management for low-wear brake control |
|
| S-ramps for smooth acceleration and deceleration Flying restart circuit, PID controller |
|
