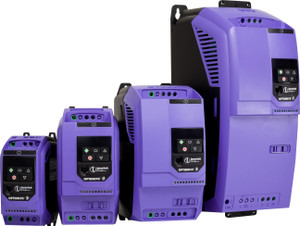

Invertek ODE-3-320240-3F4B-EIP OptiDrive E3 Economy with Ethernet IP for Industrial Motor Control

Invertek
SKU:
ODE-3-320240-3F4B-EIP
$2,995.00 $1,581.36 $2,995.00
(You save $1,413.64 )
Condition:
New
Current Stock:
Description
The Invertek ODE-3-320240-3F4B-EIP OptiDrive E3 is a robust and efficient variable frequency drive designed for industrial applications requiring precise motor control. This model integrates seamlessly with Ethernet IP, providing enhanced connectivity and real-time data exchange capabilities, essential for modern automated systems. The Economy variant of the OptiDrive E3 series offers a cost-effective solution without compromising on performance, making it ideal for OEMs and system integrators seeking reliable motor control solutions. Key technical specifications include a power range suitable for a wide array of applications, ensuring flexibility and adaptability in diverse operational environments. The drive features advanced motor control algorithms that enhance energy efficiency and reduce operational costs. Its compact design facilitates easy installation and integration into existing systems, while the intuitive interface simplifies configuration and monitoring. For OEMs, volume pricing is available, offering an economical option for large-scale projects. The Invertek ODE-3-320240-3F4B-EIP is engineered to meet the demands of modern industrial automation, providing a balance of performance, connectivity, and cost-efficiency.
Additional Information
Frame Size:
3
Family:
ODE-3
Input Current (Amps):
26.4A
Output Current (Amps):
24A
Power Rating (kW):
5.5
Power Rating (HP):
7.5Hp
Input Voltage:
200~240V 3
Output Voltage:
200~240V 3
IP / NEMA Rating:
IP66/NEMA4X Indoor/Outdoor
Operators/Description:
LED Keypad+Pot,FSR,Disconnect
EMC Filter:
C1/2/3
Brake Transitor:
Built-in
Fieldbus:
Ethernet IP
Alt 1Ø Input or KAIC:
200~240V 3(1)
Alt 1Ø Hp or Drive P/N:
7.5Hp(3.7Hp)
Alt 1Ø Amps:
24A(12A)
Product Weight (lb):
14.6
Product Dimensions (mm) H x W x D:
310x211x235
Product Dimensions (in) H x W x D:
12.2x8.3x9.3
