Leuze

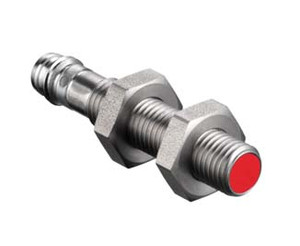

Leuze IS 208MM/4NC-2E0-S8.3 Inductive switch

SKU:

IS 208MM/4NC-2E0-S8.3

UPC:

MPN:

50109654

Condition:

New

Series:

208

type. operating range limit Sn:

2 mm

Operating range Sa:

0 ... 1.6 mm

Protective circuit:

Inductive protection,Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC

Residual ripple:

0 ... 20 %, From UB

Open-circuit current:

0 ... 10 mA

Temperature drift, max. (in % of Sr):

10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr):

5 %, For UB = 20 … 30?V?DC, ambient temperature Ta = 23?°C ± 5?°C

Switching hysteresis:

10 %

Number of digital switching outputs:

1 Piece(s)

Voltage type:

DC

Switching current, max.:

200 mA

Residual current, max.:

0.1 mA

Voltage drop:

? 2 V

Switching element:

Transistor, PNP

Switching principle:

NC (normally closed)

Switching frequency:

5,000 Hz

Readiness delay:

32 ms

Number of connections:

1 Piece(s)

Function:

Signal OUT,Voltage supply

Type of connection:

Connector

Thread size:

M8

Type:

Male

Material:

Stainless steel

No. of pins:

3 -pin

Encoding:

A-coded

Design:

Cylindrical

Dimension (Ø x L):

8 mm x 45 mm

Thread size:

M8 x 1 mm

Type of installation:

Embedded

Housing material:

Stainless steel

Stainless steel housing:

V2A

Sensing face material:

Plastic, Polyamide (PA 12)

Net weight:

13 g

Housing color:

Red, RAL 3000,Silver

Type of fastening:

Mounting thread,Via optional mounting device

Standard measuring plate:

8 x 8 mm², Fe360

Type of display:

LED

Number of LEDs:

1 Piece(s)

Ambient temperature, operation:

-25 ... 70 °C

Ambient temperature, storage:

-25 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Test procedure for EMC in accordance with standard:

IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4

Standards applied:

IEC 60947-5-2

Aluminum:

0.3

Stainless steel:

0.7

Copper:

0.3

Brass:

0.45

Fe360 steel:

1

Customs tariff number:

85365019

ECLASS 5.1.4:

27270101

ECLASS 8.0:

27270101

ECLASS 9.0:

27270101

ECLASS 10.0:

27270101

ECLASS 11.0:

27270101

ECLASS 12.0:

27274001

ECLASS 13.0:

27274001

ECLASS 14.0:

27274001

ECLASS 15.0:

27274001

ETIM 5.0:

EC002714

ETIM 6.0:

EC002714

ETIM 7.0:

EC002714

ETIM 8.0:

EC002714

ETIM 9.0:

EC002714

ETIM 10.0:

EC002714

Datasheet:

View

Brochure:

View

Declaration of Conformity:

View
