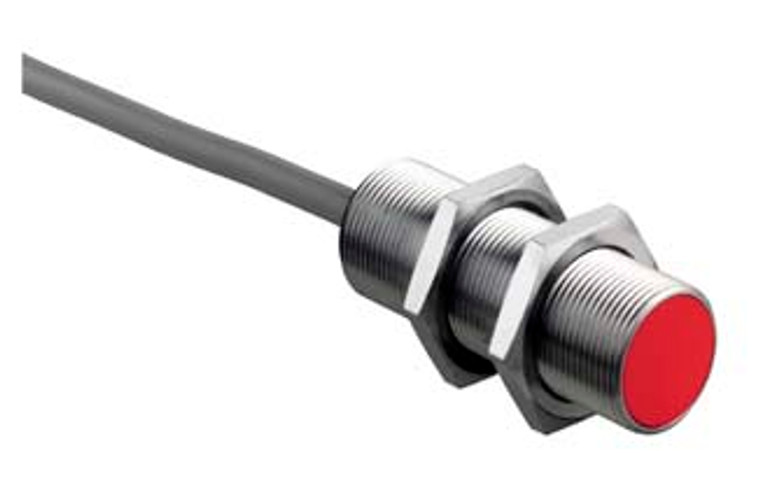

IS 218MM/1NC.3-5E0 Inductive switch
- Series:
- 218
- type. operating range limit Sn:
- 5 mm
- Operating range Sa:
- 0 ... 4 mm
- Repeatability:
- 0.5 mm
- Protective circuit:
- Inductive protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 320 V, AC/DC
- Residual ripple:
- 0 ... 20 %, From UB
- Open-circuit current:
- 0 ... 1 mA
- Temperature drift, max. (in % of Sr):
- 10 %, Over the entire operating temperature range
- Switching hysteresis:
- 20 %
- Number of digital switching outputs:
- 1 Piece(s)
- Voltage type:
- AC/DC
- Switching current, max.:
- 200 mA
- Voltage drop:
- ? 2 V
- Switching element:
- Relay, NC
- Switching principle:
- NC (normally closed)
- Switching frequency:
- 1,500 Hz
- Oscillator frequency:
- 175,000 Hz
- Readiness delay:
- 70 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Voltage supply
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Sheathing material:
- PVC
- Cable color:
- Black
- Number of conductors:
- 2 -wire
- Wire cross section:
- 0.34 mm²
- Design:
- Cylindrical
- Dimension (Ø x L):
- 18 mm x 50 mm
- Thread size:
- M18 x 1 mm
- Type of installation:
- Embedded
- Housing material:
- Metal
- Metal housing:
- Chromed brass
- Sensing face material:
- Plastic, Polybutylene (PBT)
- Net weight:
- 116 g
- Housing color:
- Red, RAL 3000,Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Standard measuring plate:
- 18 x 18 mm², Fe360
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Test procedure for EMC in accordance with standard:
- IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4
- Standards applied:
- IEC 60947-5-2
- Aluminum:
- 0.4
- Stainless steel:
- 0.85
- Copper:
- 0.38
- Brass:
- 0.5
- Fe360 steel:
- 1
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270101
- ECLASS 8.0:
- 27270101
- ECLASS 9.0:
- 27270101
- ECLASS 10.0:
- 27270101
- ECLASS 11.0:
- 27270101
- ECLASS 12.0:
- 27274001
- ECLASS 13.0:
- 27274001
- ECLASS 14.0:
- 27274001
- ECLASS 15.0:
- 27274001
- ETIM 5.0:
- EC002714
- ETIM 6.0:
- EC002714
- ETIM 7.0:
- EC002714
- ETIM 8.0:
- EC002714
- ETIM 9.0:
- EC002714
- ETIM 10.0:
- EC002714
