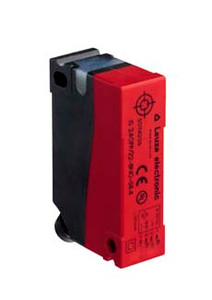

Leuze IS 240PP/44-8N0 Inductive switch
Leuze
$185.19
IS 240PP/44-8N0 Inductive switch
- Series:
- 240
- type. operating range limit Sn:
- 8 mm
- Operating range Sa:
- 0 ... 6.4 mm
- Protective circuit:
- Inductive protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 20 %, From UB
- Open-circuit current:
- 0 ... 20 mA
- Repeatability, max. (in % of Sr):
- 10 %, For UB = 20 30?V?DC, ambient temperature Ta = 23?°C ± 5?°C
- Switching hysteresis:
- 5 %
- Number of digital switching outputs:
- 2 Piece(s)
- Voltage type:
- DC
- Switching current, max.:
- 250 mA
- Residual current, max.:
- 0.01 mA
- Voltage drop:
- ? 2 V
- Switching principle:
- NO contact Antivalent
- Switching principle:
- NC contact Antivalent
- Switching frequency:
- 1,400 Hz
- Readiness delay:
- 300 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Sheathing material:
- PVC
- Cable color:
- Black
- Number of conductors:
- 4 -wire
- Wire cross section:
- 0.5 mm²
- Design:
- Cubic
- Dimension (W x H x L):
- 12 mm x 40 mm x 26 mm
- Type of installation:
- Non-embedded
- Housing material:
- Plastic
- Plastic housing:
- PA 66
- Sensing face material:
- Plastic, Polyamide (PA 66)
- Net weight:
- 110 g
- Housing color:
- Black,Red, RAL 3000
- Type of fastening:
- Fastening on back,Through-hole mounting
- Standard measuring plate:
- 12 x 12 mm², Fe360
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Ambient temperature, operation:
- -25 ... 70 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- IEC 61000-4-2,IEC 61000-4-3,IEC 61000-4-4
- Standards applied:
- IEC 60947-5-2
- Aluminum:
- 0.4
- Stainless steel:
- 0.8
- Copper:
- 0.45
- Brass:
- 0.55
- Fe360 steel:
- 1
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270101
- ECLASS 8.0:
- 27270101
- ECLASS 9.0:
- 27270101
- ECLASS 10.0:
- 27270101
- ECLASS 11.0:
- 27270101
- ECLASS 12.0:
- 27274001
- ECLASS 13.0:
- 27274001
- ECLASS 14.0:
- 27274001
- ECLASS 15.0:
- 27274001
- ETIM 5.0:
- EC002714
- ETIM 6.0:
- EC002714
- ETIM 7.0:
- EC002714
- ETIM 8.0:
- EC002714
- ETIM 9.0:
- EC002714
- ETIM 10.0:
- EC002714
