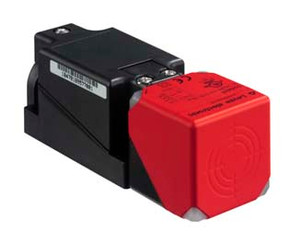

Leuze IS 244PP/44-40N-TB.4 Industrial Sensor System
Leuze
$291.00
The IS 244PP/44-40N-TB.4 is a precision industrial sensor engineered for demanding automation applications. Featuring IP68 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP68 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -25...85 °C
Typical Applications:
Standard applications include metal part detection, pneumatic cylinder position sensing, machine tool proximity switching, and limit sensing on automated equipment. The rugged all-metal housing withstands mechanical shock, coolant exposure, and vibration in machining and assembly operations.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model IS 244PP/44-40N-TB.4). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 244
- type. operating range limit Sn:
- 40 mm
- Operating range Sa:
- 0 ... 32.4 mm
- Special version:
- Antivalent
- Protective circuit:
- Inductive protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 20 %, From UB
- Open-circuit current:
- 0 ... 20 mA
- Switching hysteresis:
- 5 %
- Number of digital switching outputs:
- 2 Piece(s)
- Voltage type:
- DC
- Switching current, max.:
- 200 mA
- Residual current, max.:
- 0.5 mA
- Voltage drop:
- ? 2 V
- Switching principle:
- NO contact Antivalent
- Switching principle:
- NC contact Antivalent
- Switching frequency:
- 180 Hz
- Readiness delay:
- 80 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Terminal
- No. of pins:
- 4 -pin
- Design:
- Cubic
- Dimension (W x H x L):
- 40 mm x 40 mm x 118 mm
- Type of installation:
- Non-embedded
- Housing material:
- Plastic
- Plastic housing:
- PA 66
- Sensing face material:
- Plastic, Polyamide (PA 66)
- Net weight:
- 225 g
- Housing color:
- Black
- Type of fastening:
- Through-hole mounting
- Standard measuring plate:
- 120 x 120 mm², Fe360
- Type of display:
- LED
- Number of LEDs:
- 4 Piece(s)
- Ambient temperature, operation:
- -25 ... 85 °C
- Ambient temperature, storage:
- -25 ... 85 °C
- Degree of protection:
- IP 68,IP 69K
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Aluminum:
- 0.31
- Stainless steel:
- 0.74
- Copper:
- 0.3
- Brass:
- 0.39
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270101
- ECLASS 8.0:
- 27270101
- ECLASS 9.0:
- 27270101
- ECLASS 10.0:
- 27270101
- ECLASS 11.0:
- 27270101
- ECLASS 12.0:
- 27274001
- ECLASS 13.0:
- 27274001
- ECLASS 14.0:
- 27274001
- ECLASS 15.0:
- 27274001
- ETIM 5.0:
- EC002714
- ETIM 6.0:
- EC002714
- ETIM 7.0:
- EC002714
- ETIM 8.0:
- EC002714
- ETIM 9.0:
- EC002714
- ETIM 10.0:
- EC002714
