Name: SMC IS3010-N02L5-X203 Pressure Switch, Is Isg
SKU: IS3010-N02L5-X203
Price: 66.35 USD
Availability: InStock

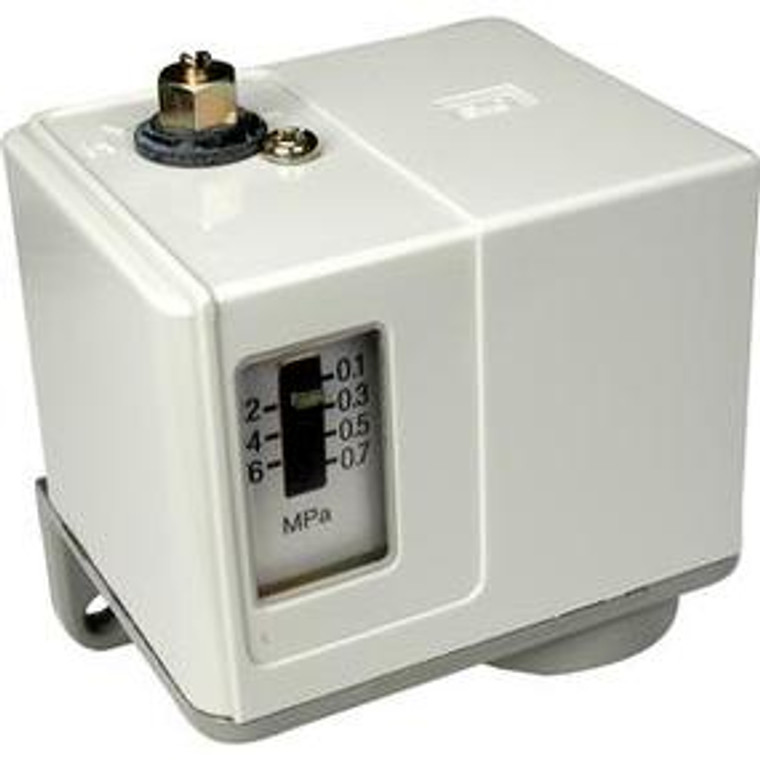

SMC IS3010-N02L5-X203 Pressure Switch, Is Isg

(No reviews yet) Write a Review

SKU:

IS3010-N02L5-X203

MPN:

IS3010-N02L5-X203

Condition:

New

Description

Description

pneumatic pressure switch series is3000 can be used for small electrical loads of 10ma such as relays and programmable controllers. is3000 has a high frequency operation of 1 cycle/sec and a long life of 10 million cycles due to piston construction. calibration ranges from 0.1 to 0.7 mpa.

series catalog

View AllClose

SMC IS3010-N02 Pressure Switch, Is Isg

$51.65

Pneumatic Pressure Switch

IS3010-N02

<h2>IS3000, Mechanical Pressure Switch, AC/DC</h2><p><h3>IS3000 is a mechanical pressure switch for applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when the set point is reached. This mechanical switch offers excellent hysteresis and repeatability. The circuit can be wired normally open or closed, with either AC or DC voltage and an optional micro load amperage. Optional indicator lights are also available. Any non-corrosive, non-flammable gas can be monitored. IP40 enclosure rating.</h3>- Mechanical pressure switch rated to 10 million cycles<br>- Set pressure range: 0.1 to 0.7 MPa<br>- Switch output is AC/DC circuit voltage for standard and micro industrial loads<br>- Minimum electrical load: 5 VDC/160 mA (standard) or 5 VDC /1mA (micro)<br>- Repeatability: 0.05 MPa<br>- Hysteresis: 0.05 MPa or less<br>- <p><a href="https://content2.smcetech.com/pdf/IS3000.pdf" target="_blank">Series Catalog</a>

SMC IS3010-02L5 Pneumatic Pressure Switch

$64.15

IS3000, Mechanical Pressure Switch, AC/DCIS3000 is a mechanical pressure switch for applications where an electronic switch is unsuitable, or when it is desirable to trigger an electrical device when...

IS3010-02L5
