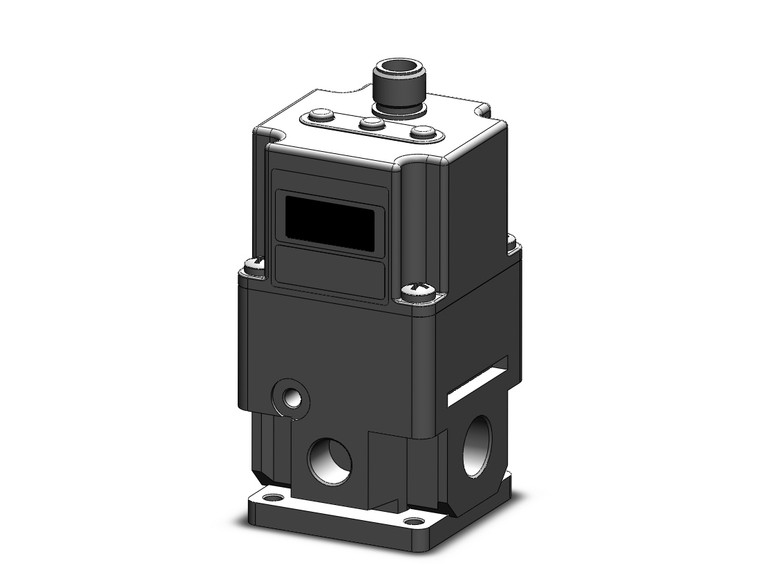

SMC ITV2050-03N2N3 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$360.00
The SMC ITV2050-03N2N3 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise air pressure control in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments with a sensitivity of 0.2 kPa for the 100 kPa specification. The regulator boasts impressive linearity, maintaining deviations within ±1% or less of full scale, and minimal hysteresis at 0.5% or less. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into diverse industrial systems. Ideal for applications requiring reliable and precise pneumatic control.
- Type:
- 2000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- NPT
- Port Size:
- 1/4
- Bracket:
- Without Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
