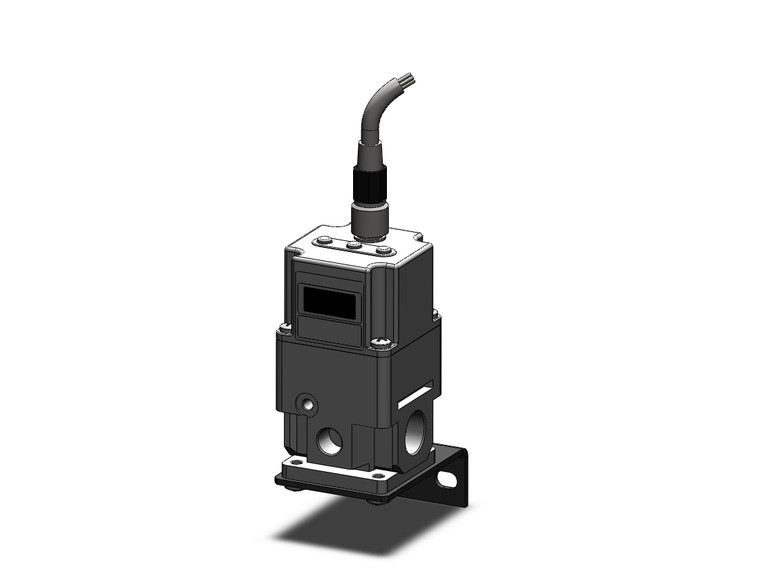

SMC ITV2050-40N3CS4 Regulator, Electropneumatic
- SKU:
- ITV2050-40N3CS4
- Condition:
- New
- Model:
- 1500 L/min
- Pressure Range:
- 0.005~0.9MPa
- Power Voltage:
- 24VDC
- Input Signal:
- Preset Input
- Monitor Output:
- For Input Signal/Communication Model Types 40, CC, DE, PR and RC Only
- Thread:
- NPT
- Port Size:
- 2000,3000
Description
ITV1000/2000/3000, Electro-Pneumatic Regulator
Series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure steplessly in proportion to an electric signal. The units are compact, lightweight, and include an easy to read LED display. Input signals can be analog current or voltage, 4 or 16 point presets, or a range of communication protocols including CC-Link, DeviceNet , PROFIBUS, RS-232C or I/O-Link. EtherNet/IP , and PROFINET are available as well. See the separate configurators on this site. Monitor output is available as an analog or switch signal. ITV regulators are IP65 equivalent.
- Controls air pressure in proportion to an electric signal- Available in MPa, kgf/cm , bar, PSI, and kPa units
- Pressure range of 0.005 to 0.9MPa
- Available port sizes 1/4, 3/8 and 1/2
- Mounting bracket option
- Made to order options available for expanded features, including analog 4-20mA sourcing type, manifold mountable, high speed response, and others
-
