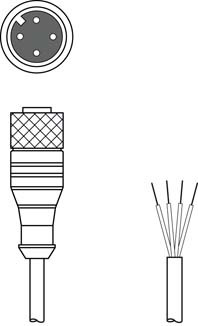

Leuze K-D M12A-4P-5m-FAB M12 A-Coded 4-Pin Female Straight Single-Ended Cordset, 5 m, PVC
Leuze
$35.00
Leuze K-D M12A-4P-5m-FAB M12 A-Coded 4-Pin Single-Ended Cordset
The Leuze K-D M12A-4P-5m-FAB is a molded M12 cordset with an A-coded 4-pin connection, female connector, straight orientation, 5 m cable, PVC jacket and open wire leads on the opposite end. Molded cordsets are factory-terminated and sealed, so they install quickly and hold their rating in washdown, oil, and vibration where hand-wired terminations tend to fail.
A-coded M12 is the standard interface for sensors, actuators, valves, and I/O modules, and is also used for DeviceNet, CANopen, and IO-Link connections.
Specifications
| Brand | Leuze |
| Part Number | K-D M12A-4P-5m-FAB |
| Manufacturer ID | 50104572 |
| Product Type | Single-ended cordset |
| Connector | M12 |
| Coding | A-Coded |
| Number of Pins | 4 |
| Gender | Female |
| Orientation | Straight |
| Other End | Open end |
| Cable Length | 5 m |
| Jacket Material | PVC |
Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
- Application:
- Hygienic and wet areas
- Operating voltage:
- Max. 250 V AC/DC
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Connector, LED:
- No
- Lock:
- Screw fitting, stainless steel V4A, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Open end
- Number of conductors:
- 4 Piece(s)
- Sheathing color:
- Black
- Shielded:
- No
- Silicone-free:
- Yes
- Cable length:
- 5,000 mm
- Sheathing material:
- PVC
- Wire insulation:
- PVC
- Suitability for drag chains:
- No
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone and lead, easily machine-processable
- Resistance of the outer sheathing:
- Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Ambient temperature, operation, flexible use:
- -5 ... 80 °C
- Ambient temperature, operation, stationary use:
- -30 ... 80 °C
- Degree of protection:
- IP 65,IP 67,IP 69K
- Approvals:
- UL,c UL US
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
- Cordset Design:
- Single-Ended
