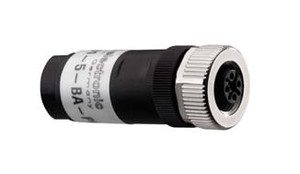

Leuze KD 01-8-BA-PWR Industrial Sensor System
Leuze
$289.00
The KD 01-8-BA-PWR is a precision industrial sensor engineered for demanding automation applications. Featuring IP67 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Operating temperature: -40...85 °C (extended cold storage rating)
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model KD 01-8-BA-PWR). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Rated operating current:
- 2,000 mA
- Rating voltage (DIN EN 60664-1):
- 60 V
- Rated impulse voltage (DIN EN 60664-1):
- 800 V
- Number of connections:
- 2 Piece(s)
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- No. of pins:
- 8 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Type of connection:
- Jack socket
- AWG:
- 20
- Width across flats:
- 18 mm
- Mating cycles, max.:
- > 50
- Cable hole:
- 6 8 mm
- Ambient temperature, operation:
- -40 ... 85 °C
- Degree of protection:
- IP 67
- Customs tariff number:
- 85366990
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440104
- ECLASS 9.0:
- 27069190
- ECLASS 10.0:
- 27440106
- ECLASS 11.0:
- 27440106
- ECLASS 12.0:
- 27440106
- ECLASS 13.0:
- 27440106
- ECLASS 14.0:
- 27440106
- ECLASS 15.0:
- 27440106
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC002498
- ETIM 7.0:
- EC002925
- ETIM 8.0:
- EC002925
- ETIM 9.0:
- EC002925
- ETIM 10.0:
- EC002925
- Datasheet:
- View
