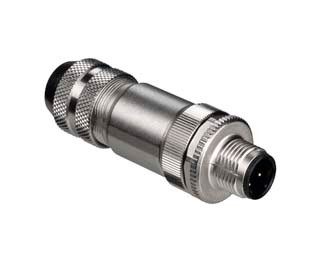

KD 02-5-SA Connector
- Operating voltage:
- Max. 60 V AC/DC
- Rated operating current:
- 4,000 mA
- Function:
- Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Handle body material:
- Metal
- No. of pins:
- 5 -pin
- Encoding:
- B-coded
- Version:
- Axial
- Lock:
- Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Screw terminal
- Wire cross section:
- 0.75 mm²
- AWG:
- 18
- Width across flats:
- 18 mm
- Cable hole:
- 4 6 mm,5 8 mm,6 8 mm,6,5 8,5 mm,8 9 mm
- Ambient temperature, operation:
- -40 ... 85 °C
- Degree of protection:
- IP 67
- Approvals:
- c UL US
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440102
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27440102
- ECLASS 11.0:
- 27440102
- ECLASS 12.0:
- 27440116
- ECLASS 13.0:
- 27440116
- ECLASS 14.0:
- 27440116
- ECLASS 15.0:
- 27440116
- ETIM 5.0:
- EC002635
- ETIM 6.0:
- EC002635
- ETIM 7.0:
- EC002635
- ETIM 8.0:
- EC002635
- ETIM 9.0:
- EC002635
- ETIM 10.0:
- EC002635
