Leuze KD U-M12-3A-P1-030 M12 3-Pin Female Straight Single-Ended Cordset, 3 m, PUR
Leuze
$26.00

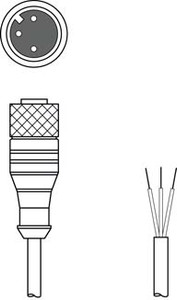

Leuze KD U-M12-3A-P1-030 M12 3-Pin Single-Ended Cordset
The Leuze KD U-M12-3A-P1-030 is a molded M12 cordset with a 3-pin connection, female connector, straight orientation, 3 m cable, PUR jacket and open wire leads on the opposite end. Molded cordsets are factory-terminated and sealed, so they install quickly and hold their rating in washdown, oil, and vibration where hand-wired terminations tend to fail.
Specifications
| Brand | Leuze |
| Part Number | KD U-M12-3A-P1-030 |
| Manufacturer ID | 50130644 |
| Product Type | Single-ended cordset |
| Connector | M12 |
| Number of Pins | 3 |
| Gender | Female |
| Orientation | Straight |
| Other End | Open end |
| Cable Length | 3 m |
| Jacket Material | PUR |
Refer to the manufacturer datasheet for the complete pinout, wiring diagram, and ratings before installation.
Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
- Application:
- Oil and lubricant resistant
- Operating voltage:
- Max. 250 V AC/DC
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Female
- No. of pins:
- 3 -pin
- Version:
- Axial
- Connector, LED:
- No
- Lock:
- Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Open end
- Number of conductors:
- 3 Piece(s)
- Sheathing color:
- Black
- Shielded:
- No
- Silicone-free:
- Yes
- Cable length:
- 3,000 mm
- Sheathing material:
- PUR
- Wire insulation:
- PUR
- Suitability for drag chains:
- Yes
- Traverse rate:
- Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s²
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable
- Resistance of the outer sheathing:
- Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Torsion suitability:
- ±180° / m (max. 2 mio. cycles with 35 cycles / min)
- Width across flats:
- 13 mm
- Net weight:
- 102 g
- Bending cycles:
- 5,000,000 Piece(s)
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Ambient temperature, operation, flexible use:
- -25 ... 80 °C
- Ambient temperature, operation, stationary use:
- -40 ... 80 °C
- Degree of protection:
- IP 65,IP 67
- Approvals:
- c UL US
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
- Cordset Design:
- Single-Ended
