Leuze KDS S-M12-CA-M12-CA-P1-100 M12 A-Coded 12-Pin Male to Female Double-Ended Cordset, 10 m, PUR
Leuze
$274.00

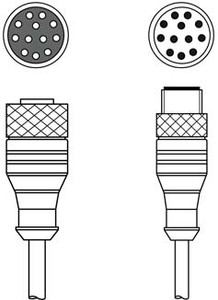

Leuze KDS S-M12-CA-M12-CA-P1-100 M12 A-Coded 12-Pin Double-Ended Cordset
The Leuze KDS S-M12-CA-M12-CA-P1-100 is a molded M12 cordset with an A-coded 12-pin connection, straight orientation, 10 m cable and PUR jacket. Molded cordsets are factory-terminated and sealed, so they install quickly and hold their rating in washdown, oil, and vibration where hand-wired terminations tend to fail.
A-coded M12 is the standard interface for sensors, actuators, valves, and I/O modules, and is also used for DeviceNet, CANopen, and IO-Link connections.
Specifications
| Brand | Leuze |
| Part Number | KDS S-M12-CA-M12-CA-P1-100 |
| Manufacturer ID | 50130286 |
| Product Type | Double-ended cordset |
| Connector | M12 |
| Coding | A-Coded |
| Number of Pins | 12 |
| Gender | Male / Female |
| Orientation | Straight |
| Cable Length | 10 m |
| Jacket Material | PUR |
| Shielded | Yes |
Need help matching coding, pin count, or length to your device? Contact Automation Distribution and our team will help you choose the right M12 connection.
- Application:
- Oil and lubricant resistant
- Type:
- Female
- Connector, LED:
- No
- Type:
- Male
- Sheathing color:
- Black
- Shielded:
- Yes
- Silicone-free:
- Yes
- Cable design:
- Interconnection cable
- Cable length:
- 10,000 mm
- Sheathing material:
- PUR
- Wire insulation:
- PP
- Suitability for drag chains:
- Yes
- Traverse rate:
- Max. 3.3 m/s with horiz. traverse path of 5m and and max. acceleration of 5m/s²
- Properties of the outer sheathing:
- Free of CFC, cadmium, silicone, halogen and lead, matt, low-adhesion, abrasion-resistant, easily machine-processable
- Resistance of the outer sheathing:
- Hydrolysis and microbe resistant, good oil, gasoline and chemical resistance in accordance with VDE 0472 part 803 test B, flame retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
- Torsion suitability:
- ±30° / m (max. 2 mio. cycles with 35 cycles / min)
- Width across flats:
- 13 mm
- Bending cycles:
- 5,000,000 Piece(s)
- Bending radius, flexible laying, min.:
- Min. 10 x cable diameter
- Bending radius, stationary laying, min.:
- Min. 5 x cable diameter
- Degree of protection:
- IP 67
- Customs tariff number:
- 85444290
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27279218
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27060311
- ECLASS 11.0:
- 27060311
- ECLASS 12.0:
- 27060311
- ECLASS 13.0:
- 27060311
- ECLASS 14.0:
- 27060311
- ECLASS 15.0:
- 27060311
- ETIM 5.0:
- EC001855
- ETIM 6.0:
- EC001855
- ETIM 7.0:
- EC001855
- ETIM 8.0:
- EC001855
- ETIM 9.0:
- EC001855
- ETIM 10.0:
- EC001855
- Datasheet:
- View
- Brochure:
- View
- Coding:
- A-Coded
- Pins:
- 12
- Cordset Design:
- Double-Ended
