SMC

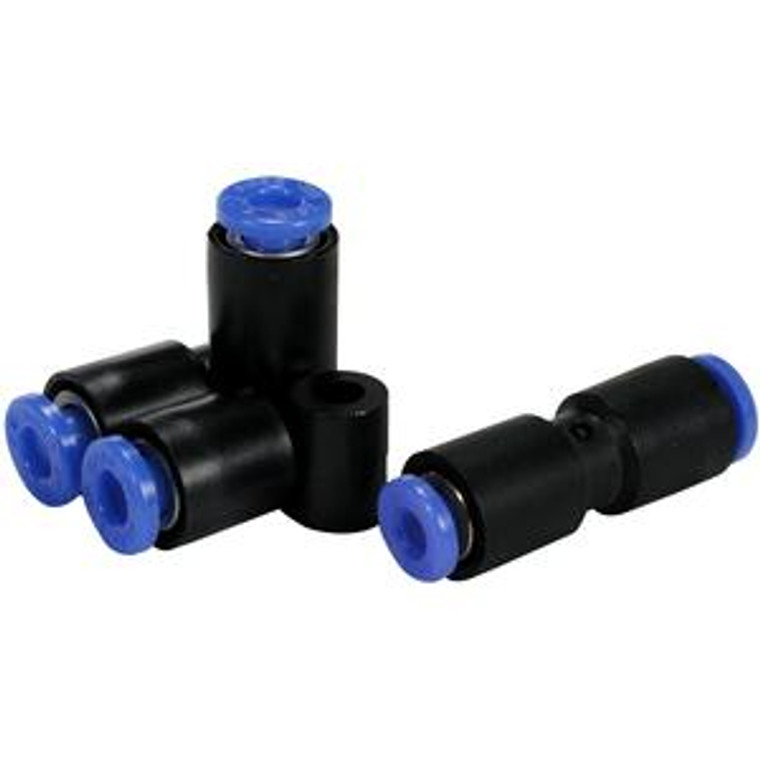

SMC KQH07-36S-X23 KQ2 Series Inch-size One-touch Fittings, Applicable Tubing

(No reviews yet) Write a Review
SKU:
KQH07-36S-X23
MPN:
KQH07-36S-X23
Condition:
New
Product’s Color:
Body:Black Release Button:Red
Type:
Male Connector, Straight Union, Different Diameter Straight
Applicable Tubing O.D.:
Φ1/4"
Bore Size:
NPT 3/8
Sealant (Male thread):
With Thread Sealant
Made To Order:
Metal material: Stainless steel 303 Width across flats: Metric size
  • SMC KQH07-36S-X23 Fitting, Male Connector Pack of 10
  • SMC KQH07-36S-X23 KQ2 Series Inch-size One-touch Fittings, Applicable Tubing
$199.60

Description

KQ2 Series Inch-size One-touch Fittings, Applicable Tubing

  • Possible to use in vacuum to -100 kPa;
  • Body type: Totaled 51 models;
  • Thread material/Surface treatment(Treated or Non-treated): 2 types;
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
  • Applicable Tubing O.D.;　Circular;　Metric：Φ2,Φ3.2,Φ4,Φ6,Φ8,Φ10,Φ12,Φ16;　Inch：Φ1/8",Φ5/32",Φ3/16",Φ1/4",Φ5/16",Φ3/8",Φ1/2";　Oval;　Metric：Φ3.2,Φ4,Φ6;　Inch：Φ1/8",Φ5/32",Φ3/16";
  • Connection Thread;　Metric：M3, M5, M6;　R,Rc：1/8,1/4,3/8,1/2;　G：1/8,1/4,3/8,1/2;　NPT：10-32UNF,1/16,1/8,1/4,3/8,1/2;　Uni：1/8,1/4,3/8,1/2;
  • Seal Method;　Sealant/Gasket Seal;　Face Seal;　Gasket Seal（Uni Thread）
