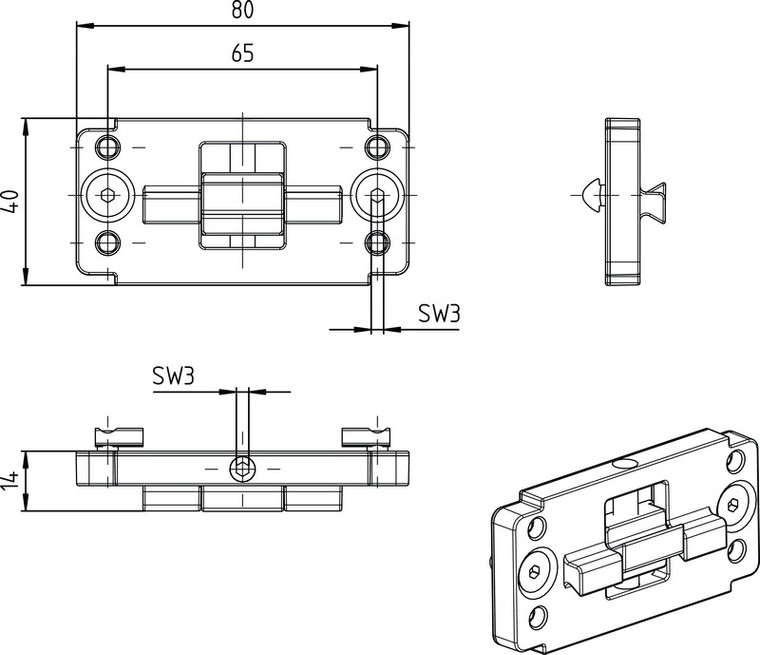

The Leuze BT-2P45 is a mounting bracket designed for secure installation of safety light curtains, containing two BT-P45 clamps for reliable positioning. It features M6 bore holes for fastening and a mounting clamp design optimized for groove mounting directly at the system, with a net weight of 191 g. This bracket ensures precise alignment and stability in industrial safety applications requiring robust sensor mounting.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/bt-2p45/424439
- Product Details and Downloads: https://www.leuze.com/en-us/bt-2p45/424439
- CAD Data (via Downloads section): https://www.leuze.com/en-int/downloads/bt-2p45
- Safety Light Curtains Catalog: https://www.leuze.com/en-int/products/safety-light-curtains
- Contains:
- 2x BT-P45
- Suitable for product group:
- Safety light curtains
- Suitable for:
- ELC100 safety light curtains
- Bore hole 1, diameter:
- M6
- Bore hole 2, diameter:
- M6
- Design of mounting device:
- Mounting clamp
- Type of fastening, at system:
- Groove mounting
- Type of fastening, at device:
- Groove mounting
- Type of mounting device:
- Clampable,Suitable for mounting in UDC-S2, DC-S2 device columns
- Mounting device material:
- Metal
- Customs tariff number:
- 73182900
- ECLASS 5.1.4:
- 27279202
- ECLASS 8.0:
- 27279202
- ECLASS 9.0:
- 27273701
- ECLASS 10.0:
- 27273701
- ECLASS 11.0:
- 27273701
- ECLASS 12.0:
- 27273701
- ECLASS 13.0:
- 27273701
- ECLASS 14.0:
- 27273701
- ECLASS 15.0:
- 27273701
- ETIM 5.0:
- EC002498
- ETIM 6.0:
- EC003015
- ETIM 7.0:
- EC003015
- ETIM 8.0:
- EC003015
- ETIM 9.0:
- EC003015
- ETIM 10.0:
- EC003015
- Datasheet:
- View
