Leuze DCR 202i FIX-U2-102-R3 Stationary 2D-code reader
Leuze
$2,633.00

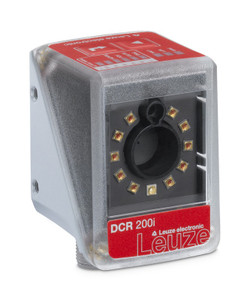

The Leuze DCR 202i FIX-U2-102-R3 is a stationary 2D code reader equipped with a monochrome CMOS camera (1280 x 960 px resolution, 0.0685 ms electronic shutter) and red LED illumination, optimized for reading 1D, stacked, and 2D codes (e.g., Data Matrix, QR, Code 128) at distances of 4075 mm with modulus sizes 0.10.25 mm. It operates on 1830 V DC with 8 W average consumption, features polarity reversal and short-circuit protection, one digital switching input, one MOSFET output (100 mA max, +24 V switching), and 2 selectable I/O; interfaces include Ethernet (10/100 Mbit/s, TCP/IP, UDP), RS 232/422. The cubic metal/plastic housing (43 x 61 x 44 mm, 120 g, IP65, 050 °C operation) supports M12 connections (12-pin A-coded for power/I/O/serial, 4-pin D-coded for Ethernet), mounting threads, 10 LEDs, buttons for teach-in/auto-setup, and web-based configuration; c UL US approved, EMC per EN 61000-6-2/4.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/dcr-202i-fix-u2-102-r3/50137574
- User Manual: https://www.leuze.com/en-int/downloads/dcr-202i-user-manual
- Installation Guide: https://www.leuze.com/en-int/downloads/dcr-202i-installation-instructions
- CAD Drawings: https://www.leuze.com/en-int/downloads/dcr-202i-cad-data
- Series:
- DCR 200i
- Chip:
- CMOS (Global Shutter)
- Software functions:
- Reading of 1D codes,Reading of 2D codes
- Code types, readable:
- 2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC
- Reading distance:
- 40 ... 75 mm
- Light source:
- LED, Red
- Transmitted-signal shape:
- Pulsed
- Camera resolution, horizontal:
- 1,280 px
- Camera resolution, vertical:
- 960 px
- Modulus size:
- 0.1 ... 0.25 mm
- Electronic shutter speed:
- 0.068 ... 5 ms
- Camera type:
- Monochrome
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 18 ... 30 V, DC
- Average power consumption:
- 8 W
- Number of digital switching inputs:
- 1 Piece(s)
- Type:
- Digital switching input
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Digital switching output
- Switching current, max.:
- 100 mA
- Switching element:
- MOSFET semiconductor
- Switching principle:
- +24 V switching
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Type:
- Inputs/outputs selectable
- Voltage type, outputs:
- DC
- Voltage type, inputs:
- DC
- Type:
- Ethernet, RS 232, RS 422
- Data bit:
- 8
- Stop bit:
- 1
- Parity:
- None
- Data bit:
- 7, 8 data bits
- Stop bit:
- 1, 2 stop bits
- Parity:
- Adjustable
- Transmission protocol:
- Adjustable
- Architecture:
- Client,Server
- Address assignment:
- DHCP,Manual address assignment
- Transmission speed:
- 10 Mbit/s,100 Mbit/s
- Switch functionality:
- None
- Transmission protocol:
- TCP/IP , UDP
- Type:
- Ethernet
- Function:
- Service
- Number of connections:
- 2 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type:
- Male
- No. of pins:
- 12 -pin
- Encoding:
- A-coded
- Function:
- Configuration interface,Data interface
- Type:
- Female
- No. of pins:
- 4 -pin
- Encoding:
- D-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 43 mm x 61 mm x 44 mm
- Housing material:
- Metal,Plastic
- Metal housing:
- Diecast aluminum
- Plastic housing:
- PC
- Lens cover material:
- Plastic
- Net weight:
- 120 g
- Housing color:
- Silver
- Type of fastening:
- Mounting thread,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 10 Piece(s)
- Type of configuration:
- Configuration codes,Teach-in,Via web browser
- Operational controls:
- Button(s)
- Function of the operational control:
- Adjustment mode,Auto-setup,Trigger
- Ambient temperature, operation:
- 0 ... 50 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2,EN 61000-6-4
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280103
- ECLASS 8.0:
- 27280103
- ECLASS 9.0:
- 27280103
- ECLASS 10.0:
- 27280103
- ECLASS 11.0:
- 27280103
- ECLASS 12.0:
- 27280103
- ECLASS 13.0:
- 27280103
- ECLASS 14.0:
- 27280103
- ECLASS 15.0:
- 27280103
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002999
- ETIM 7.0:
- EC002999
- ETIM 8.0:
- EC002999
- ETIM 9.0:
- EC002999
- ETIM 10.0:
- EC002999
