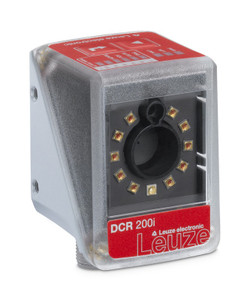

Leuze DCR 258i FIX-L1-102-R3 Stationary 2D-code reader

SKU:

DCR 258i FIX-L1-102-R3

UPC:

MPN:

50146006

Condition:

New

Series:

DCR 200i

Chip:

CMOS (Global Shutter)

Software functions:

Reading of 1D codes,Reading of 2D codes

Code types, readable:

2/5 Interleaved,Aztec,Codabar,Code 32,Code 39,Code 93,Code 128,Data Matrix Code,EAN 8/13,EAN 128,GS1 Databar,GS1 Databar Omnidirectional,GS1 Databar QR code,GS1 Databar Stacked,PDF417,Pharma Code,QR code,UPC

Reading distance:

50 ... 800 mm

Light source:

LED, Red

Transmitted-signal shape:

Pulsed

Camera resolution, horizontal:

1,280 px

Camera resolution, vertical:

960 px

Modulus size:

0.35 ... 1 mm

Electronic shutter speed:

0.068 ... 5 ms

Camera type:

Monochrome

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

18 ... 30 V, DC

Average power consumption:

8 W

Number of digital switching inputs:

1 Piece(s)

Type:

Digital switching input

Number of digital switching outputs:

1 Piece(s)

Type:

Digital switching output

Switching current, max.:

100 mA

Switching element:

MOSFET semiconductor

Switching principle:

+24 V switching

Number of inputs/outputs selectable:

2 Piece(s)

Type:

Inputs/outputs selectable

Voltage type, outputs:

DC

Voltage type, inputs:

DC

Type:

EtherNet IP, Ethernet, RS 232, RS 422

Data bit:

8

Stop bit:

1

Parity:

None

Data bit:

7, 8 data bits

Stop bit:

1, 2 stop bits

Parity:

Adjustable

Transmission protocol:

Adjustable

Transmission speed:

10 Mbit/s,100 Mbit/s

Architecture:

Client,Server

Transmission speed:

10 / 100 Mbit/s

Transmission protocol:

TCP/IP , UDP

Type:

Ethernet

Function:

Service

Number of connections:

2 Piece(s)

Function:

Data interface,Signal IN,Signal OUT,Voltage supply

Type:

Male

No. of pins:

12 -pin

Encoding:

A-coded

Function:

Configuration interface,Data interface

Type:

Female

No. of pins:

4 -pin

Encoding:

D-coded

Design:

Cubic

Dimension (W x H x L):

43 mm x 61 mm x 44 mm

Housing material:

Metal,Plastic

Metal housing:

Diecast aluminum

Plastic housing:

PC

Lens cover material:

Plastic

Net weight:

120 g

Housing color:

Silver

Type of fastening:

Mounting thread,Via optional mounting device

Type of display:

LED

Number of LEDs:

10 Piece(s)

Type of configuration:

Configuration codes,Teach-in,Via web browser

Operational controls:

Button(s)

Function of the operational control:

Adjustment mode,Auto-setup,Trigger

Ambient temperature, operation:

0 ... 45 °C

Ambient temperature, storage:

-20 ... 70 °C

Relative humidity (non-condensing):

90 %

Degree of protection:

IP 65

Protection class:

III

Approvals:

c UL US

Test procedure for EMC in accordance with standard:

EN 61000-6-2,EN 61000-6-4

Test procedure for continuous shock in accordance with standard:

IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard:

IEC 60068-2-6, test Fc

Customs tariff number:

84719000

ECLASS 5.1.4:

27280103

ECLASS 8.0:

27280103

ECLASS 9.0:

27280103

ECLASS 10.0:

27280103

ECLASS 11.0:

27280103

ECLASS 12.0:

27280103

ECLASS 13.0:

27280103

ECLASS 14.0:

27280103

ECLASS 15.0:

27280103

ETIM 5.0:

EC002550

ETIM 6.0:

EC002999

ETIM 7.0:

EC002999

ETIM 8.0:

EC002999

ETIM 9.0:

EC002999

ETIM 10.0:

EC002999
