Leuze HT55C.S/LG-M8 Industrial Sensor System
Leuze
$303.00

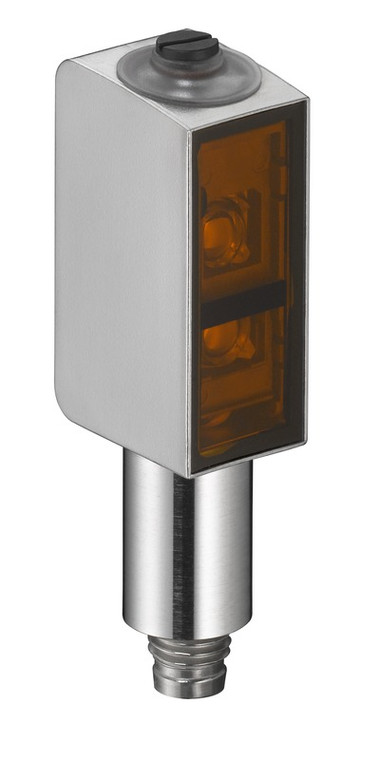

The HT55C.S/LG-M8 is a high-performance diffuse reflection sensor with background suppression for precise object detection at extended ranges. Its adjustable sensing distance and robust housing design make it suitable for harsh manufacturing environments with dust, humidity, and temperature extremes.
Technical Specifications:
Light source: LED, red emission
Protection rating: IP67 (dust-tight, water-resistant for washdown environments)
Supply voltage: 10...30 V DC with reverse polarity protection
Operating temperature: -40...70 °C (extended cold storage rating)
Connection: M8 quick-disconnect connector
Typical Applications:
Common applications include pallet and container detection, part presence verification on assembly lines, level monitoring in hoppers and bins, and object detection on conveyors with challenging backgrounds. The background suppression feature prevents false triggers from reflective surfaces and machinery behind the target.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model HT55C.S/LG-M8). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 55C
- Operating principle:
- Diffuse reflection principle with background suppression
- Application:
- Detection of small parts
- Special version:
- Small light spot (S),Wash-Down design
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0.005 ... 0.2 m
- Operating range, gray 18%:
- 0.01 ... 0.15 m
- Operating range, black 6%:
- 0.015 ... 0.12 m
- Operating range limit:
- 0.005 ... 0.2 m
- Operating range limit:
- Typical operating range
- Adjustment range:
- 15 ... 200 mm
- Light source:
- LED, Red
- Wavelength:
- 650 nm
- LED group:
- Exempt group (in acc. with EN 62471)
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC, Incl. residual ripple
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 15 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- IO-Link / light switching (PNP)/dark switching (NPN)
- Switching principle:
- Dark switching (PNP)/light switching (NPN)
- Switching frequency:
- 1,000 Hz
- Response time:
- 0.5 ms
- Readiness delay:
- 300 ms
- Type:
- IO-Link
- COM mode:
- COM2
- Profile:
- Smart sensor profile
- Min. cycle time:
- COM2 = 2.3 ms
- Specification:
- V1.1
- Device ID:
- 6001
- SIO-mode support:
- Yes
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M8
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 4 -pin
- Dimension (W x H x L):
- 14 mm x 35.4 mm x 25 mm
- Housing material:
- Stainless steel
- Material of operational control:
- Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive
- Housing roughness:
- Ra ? 0,8, Typical value for the stainless steel housing
- Stainless steel housing:
- AISI 316L, DIN X2CrNiMo17132, W.No1.4404
- Lens cover material:
- Plastic (PMMA+) with scratch-resistant Indium protective coating
- Net weight:
- 42 g
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Compatibility of materials:
- CleanProof+,ECOLAB,Johnson Diversey
- Type of display:
- LED
- Operational controls:
- Multiturn potentiometer
- Function of the operational control:
- Range adjustment
- Ambient temperature, operation:
- -40 ... 70 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67,IP 68,IP 69K
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
