Leuze

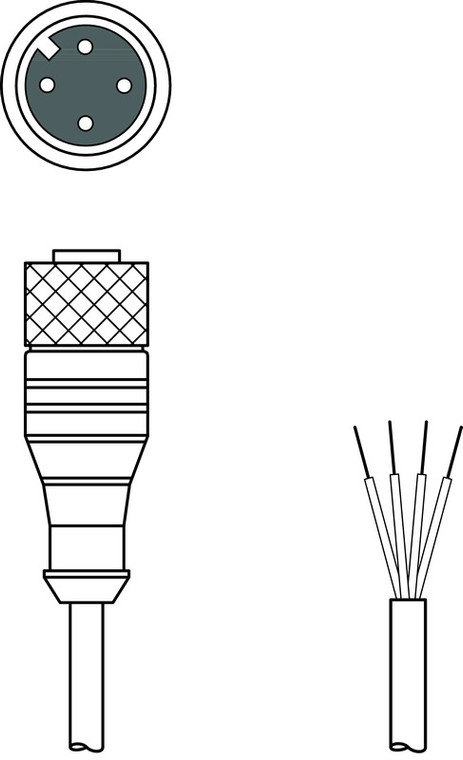

Leuze KS U-M12-4A-V1-050 Connection cable

SKU:

KS U-M12-4A-V1-050

UPC:

MPN:

50135972

Condition:

New

Application:

Chemical resistant

Operating voltage:

Max. 250 V AC/DC

Type of connection:

Connector

Thread size:

M12

Type:

Male

No. of pins:

4 -pin

Encoding:

A-coded

Version:

Axial

Connector, LED:

No

Lock:

Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking

Type of connection:

Open end

Number of conductors:

4 Piece(s)

Sheathing color:

Black

Shielded:

No

Silicone-free:

Yes

Cable length:

5,000 mm

Sheathing material:

PVC

Wire insulation:

PVC

Suitability for drag chains:

No

Properties of the outer sheathing:

Free of CFC, cadmium, silicone and lead, easily machine-processable

Resistance of the outer sheathing:

Good oil, gasoline and chemical resistance, flame retardant in accordance with UL 1581 VW1 / CSA FT1

Width across flats:

13 mm

Net weight:

219 g

Bending radius, flexible laying, min.:

Min. 10 x cable diameter

Bending radius, stationary laying, min.:

Min. 5 x cable diameter

Ambient temperature, operation, flexible use:

-5 ... 80 °C

Ambient temperature, operation, stationary use:

-30 ... 80 °C

Degree of protection:

IP 65,IP 67

Approvals:

c UL US

Customs tariff number:

85444290

ECLASS 5.1.4:

27279201

ECLASS 8.0:

27279218

ECLASS 9.0:

27060311

ECLASS 10.0:

27060311

ECLASS 11.0:

27060311

ECLASS 12.0:

27060311

ECLASS 13.0:

27060311

ECLASS 14.0:

27060311

ECLASS 15.0:

27060311

ETIM 5.0:

EC001855

ETIM 6.0:

EC001855

ETIM 7.0:

EC001855

ETIM 8.0:

EC001855

ETIM 9.0:

EC001855

ETIM 10.0:

EC001855
