Leuze

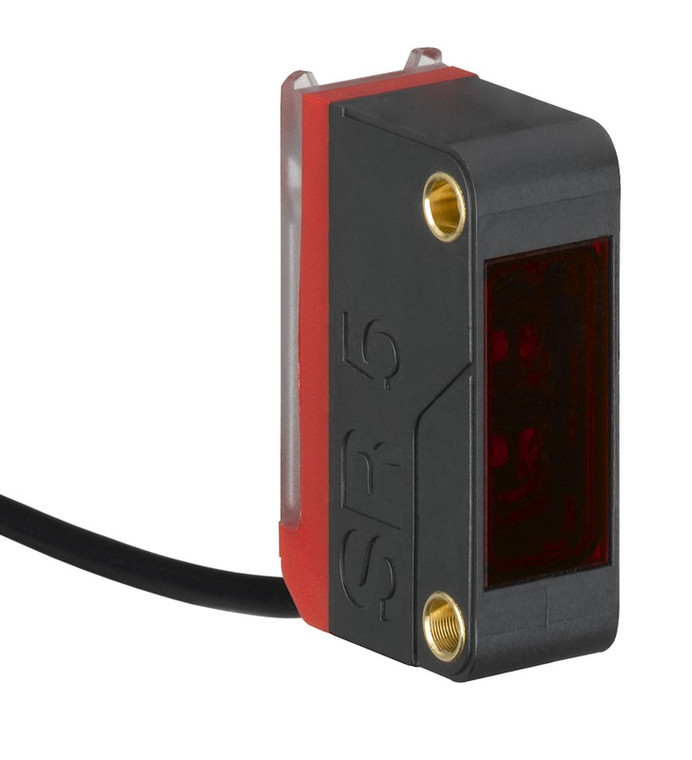

Leuze LS5B Throughbeam photoelectric sensor transmitter

SKU:

LS5B

UPC:

MPN:

50145237

Condition:

New

Series:

5B

Operating principle:

Throughbeam principle

Device type:

Transmitter

Operating range:

0 ... 10 m

Operating range:

Guaranteed operating range

Operating range limit:

0 ... 15 m

Operating range limit:

Typical operating range

Light source:

LED, Red

Wavelength:

645 nm

LED group:

Exempt group (in acc. with EN 62471)

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 20 mA

Readiness delay:

300 ms

Function:

Voltage supply

Type of connection:

Cable

Cable length:

2,000 mm

Sheathing material:

PVC

Cable color:

Black

Number of conductors:

3 -wire

Wire cross section:

0.14 mm²

Dimension (W x H x L):

11 mm x 32.4 mm x 20 mm

Housing material:

Plastic

Plastic housing:

PC-ABS

Lens cover material:

Plastic

Net weight:

44 g

Housing color:

Black,Red

Type of fastening:

Two M3 threaded sleeves,Via optional mounting device

Compatibility of materials:

ECOLAB

Type of display:

LED

Ambient temperature, operation:

-40 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270901

ECLASS 8.0:

27270901

ECLASS 9.0:

27270901

ECLASS 10.0:

27270901

ECLASS 11.0:

27270901

ECLASS 12.0:

27270901

ECLASS 13.0:

27270901

ECLASS 14.0:

27270901

ECLASS 15.0:

27270901

ETIM 5.0:

EC002716

ETIM 6.0:

EC002716

ETIM 7.0:

EC002716

ETIM 8.0:

EC002716

ETIM 9.0:

EC002716

ETIM 10.0:

EC002716

Datasheet:

View

Declaration of Conformity:

View
