Leuze

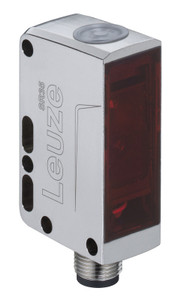

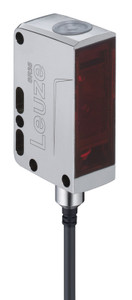

Leuze PRK35CL1.1/LG-200-M12 Polarized retro-reflective photoelectric sensor

SKU:

PRK35CL1.1/LG-200-M12

UPC:

MPN:

50150326

Condition:

New

Series:

35C

Operating principle:

Reflection principle

Operating range:

0.2 ... 20 m, With reflector TK(S) 100x100

Operating range:

Guaranteed operating range

Operating range limit:

0.15 ... 25 m, With reflector TK(S) 100x100

Operating range limit:

Typical operating range

Beam path:

Collimated

Light source:

Laser, Red

Wavelength:

650 nm

Laser class:

1, IEC/EN 60825-1:2014

Light spot size [at sensor distance]:

3 mm x 5 mm [1,000 mm]

Type of light spot geometry:

elliptic

Shift angle:

Typ. ± 1.5°

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 20 mA

Number of digital switching outputs:

2 Piece(s)

Switching principle:

IO-Link / light switching (PNP)/dark switching (NPN)

Switching principle:

Dark switching (PNP)/light switching (NPN)

Switching frequency:

2,500 Hz

Response time:

0.2 ms

Readiness delay:

300 ms

Type:

IO-Link

COM mode:

COM2

Profile:

Smart sensor profile

Min. cycle time:

COM2 = 2.3 ms

Specification:

V1.1

Device ID:

6140

SIO-mode support:

Yes

Function:

Signal IN,Signal OUT,Voltage supply

Type of connection:

Cable with connector

Cable length:

200 mm

Sheathing material:

PVC

Cable color:

Black

Wire cross section:

0.2 mm²

Thread size:

M12

Type:

Male

Material:

Stainless steel

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (W x H x L):

18.8 mm x 55.3 mm x 32.4 mm

Housing material:

Stainless steel

Material of operational control:

Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive

Housing roughness:

Ra ? 0,8, Typical value for the stainless steel housing

Stainless steel housing:

AISI 316L, DIN X2CrNiMo17132, W.No1.4404

Lens cover material:

Plastic (PMMA+) with scratch-resistant Indium protective coating

Net weight:

120 g

Housing color:

Silver

Type of fastening:

Through-hole mounting,Via optional mounting device

Compatibility of materials:

CleanProof+,ECOLAB,Johnson Diversey

Type of display:

LED

Operational controls:

270° potentiometer

Function of the operational control:

Sensitivity adjustment

Ambient temperature, operation:

-40 ... 70 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67,IP 68,IP 69K

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270902

ECLASS 8.0:

27270902

ECLASS 9.0:

27270902

ECLASS 10.0:

27270902

ECLASS 11.0:

27270902

ECLASS 12.0:

27270902

ECLASS 13.0:

27270902

ECLASS 14.0:

27270902

ECLASS 15.0:

27270902

ETIM 5.0:

EC002717

ETIM 6.0:

EC002717

ETIM 7.0:

EC002717

ETIM 8.0:

EC002717

ETIM 9.0:

EC002717

ETIM 10.0:

EC002717

Declaration of Conformity:

View

Brochure:

View

Datasheet:

View
