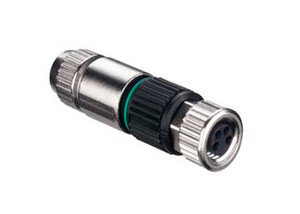

S M8A-3P-SK Connector
- Operating voltage:
- Max. 250 V AC/DC
- Type of connection:
- Connector
- Thread size:
- M8
- Type:
- Male
- Handle body material:
- Metal
- No. of pins:
- 3 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Lock:
- Screw fitting, nickel-plated diecast zinc, recommended torque 0.6 Nm, self-locking
- Type of connection:
- Insulation-piercing connecting device
- Width across flats:
- 9 mm
- Degree of protection:
- IP 67
- Customs tariff number:
- 85369010
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440102
- ECLASS 9.0:
- 27060311
- ECLASS 10.0:
- 27440102
- ECLASS 11.0:
- 27440102
- ECLASS 12.0:
- 27440116
- ECLASS 13.0:
- 27440116
- ECLASS 14.0:
- 27440116
- ECLASS 15.0:
- 27440116
- ETIM 5.0:
- EC002635
- ETIM 6.0:
- EC002635
- ETIM 7.0:
- EC002635
- ETIM 8.0:
- EC002635
- ETIM 9.0:
- EC002635
- ETIM 10.0:
- EC002635
- Datasheet:
- View
