Leuze

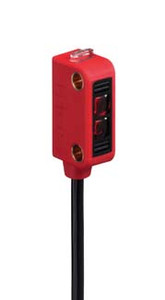

Leuze LSER 2/42,150-S12 Throughbeam photoelectric sensor receiver

SKU:

LSER 2/42,150-S12

UPC:

MPN:

50112132

Condition:

New

Series:

2

Operating principle:

Throughbeam principle

Device type:

Receiver

Application:

Detection of small parts

Protective circuit:

Overvoltage protection,Polarity reversal protection,Short circuit protected,Transient protection

Supply voltage UB:

10 ... 30 V, DC

Residual ripple:

0 ... 10 %, From UB

Open-circuit current:

0 ... 20 mA

Number of digital switching outputs:

2 Piece(s)

Switching element:

Transistor, PNP

Switching element:

Transistor, NPN

Switching frequency:

385 Hz

Response time:

1.3 ms

Readiness delay:

120 ms

Function:

Signal OUT,Voltage supply

Type of connection:

Cable with connector

Cable length:

150 mm

Sheathing material:

PVC

Cable color:

Black

Wire cross section:

0.14 mm²

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (W x H x L):

8 mm x 23.1 mm x 12 mm

Housing material:

Plastic

Plastic housing:

TPE

Lens cover material:

Plastic/PC

Net weight:

20 g

Housing color:

Red, RAL 3000

Type of fastening:

Through-hole mounting

Type of display:

LED

Ambient temperature, operation:

-30 ... 55 °C

Ambient temperature, storage:

-30 ... 75 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

cUR us

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270901

ECLASS 8.0:

27270901

ECLASS 9.0:

27270901

ECLASS 10.0:

27270901

ECLASS 11.0:

27270901

ECLASS 12.0:

27270901

ECLASS 13.0:

27270901

ECLASS 14.0:

27270901

ECLASS 15.0:

27270901

ETIM 5.0:

EC002716

ETIM 6.0:

EC002716

ETIM 7.0:

EC002716

ETIM 8.0:

EC002716

ETIM 9.0:

EC002716

ETIM 10.0:

EC002716

Datasheet:

View

Declaration of Conformity:

View
