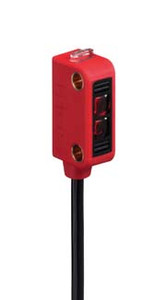

Leuze LSSR 2,150-S12 Throughbeam photoelectric sensor transmitter
Leuze
$200.00
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze LSSR 2,150-S12 Throughbeam photoelectric sensor transmitter
LSSR 2,150-S12 Throughbeam photoelectric sensor transmitter
- Series:
- 2
- Operating principle:
- Throughbeam principle
- Device type:
- Transmitter
- Application:
- Detection of small parts
- Operating range:
- 0 ... 1.6 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 2 m
- Operating range limit:
- Typical operating range
- Beam path:
- Divergent
- Light source:
- LED, Red
- Wavelength:
- 640 nm
- LED group:
- 1
- Light spot size [at sensor distance]:
- 5 mm [200 mm]
- Type of light spot geometry:
- Round
- Protective circuit:
- Overvoltage protection,Polarity reversal protection,Short circuit protected,Transient protection
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 20 mA
- Readiness delay:
- 120 ms
- Function:
- Voltage supply
- Type of connection:
- Cable with connector
- Cable length:
- 150 mm
- Sheathing material:
- PVC
- Cable color:
- Black
- Wire cross section:
- 0.14 mm²
- Thread size:
- M12
- Type:
- Male
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 8 mm x 23.1 mm x 12 mm
- Housing material:
- Plastic
- Plastic housing:
- TPE
- Lens cover material:
- Plastic/PC
- Net weight:
- 20 g
- Housing color:
- Red, RAL 3000
- Type of fastening:
- Through-hole mounting
- Type of display:
- LED
- Ambient temperature, operation:
- -30 ... 55 °C
- Ambient temperature, storage:
- -30 ... 75 °C
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- cUR us
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
