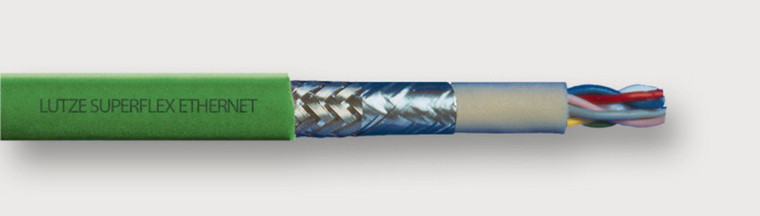

Lutze 104337 superflex ethernet (c) pur ul
- SKU:
- 104337
- Condition:
- New
Description
Technical Data
Construction
Description
SUPERFLEX???? ETHERNET (C) PUR
Number of conductors/cross-section
(4?????2?????AWG24/19)C
Jacket material
PUR
Jacket color
green RAL 6018
Outer ??
7,8 mm
Outer ??
0,307 inch
Surface
- adhesion-free
- matt
Weight
8,5 kg/100 m
Weight
46 Lbs/Mft
Cu-Index
4,4 kg/100 m
Cu-Index
37 Lbs/Mft
Element 1
Element construction
(4?????2?????AWG24/19)
Conductor construction
AWG 24/19
Conductor
- AWG conductor
- CU-wire bare
Conductor marking
- white/blue
- blue
- white/orange
- orange
- white/green
- green
- white/brown
- brown
Conductor insulation
Special Polyolefin
overall construction
Overall stranding
stranded pairs
Overall shield
- Braid shield
- Tinned copper wires
- optical cover approx. 85%
Jacket characteristics
- Flame-retardant
- Silicone-free
- Halogen free
Technical data
Rated voltage
300 V
Test voltage type
AC1500V
Temperature range moving
-30 ?????C ??????? +70 ?????C
Temperature range fixed
-40 ?????C ??????? +80 ?????C
Minimum bending radius moving
12?????D
Minimum bending radius fixed
6?????D
Category
Cat.5e
Element 1
Element construction
(4?????2?????AWG24/19)
Operating capacitance wire-wire
48 pF/m
Loop resistance
159,5 m?/m
Impedance
100 ?
Approvals/Standards
Approvals
cURus
UL style
AWM 21198
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
- IEC 60332-1
- DIN EN 60332-1-2
- VDE 0482 322-1-2
- UL 1581 Part VW-1 Flame Test
- UL FT1
Halogen free according to
- DIN EN 60754-1
- IEC 60754-1
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
For the cabling of industrial field bus systems with the globally accepted TCP/IP protocol For continuous flexing use e.g. in c-tracks or free movement in the automation technology, transport and conveyor technology, machine tool manufacture
