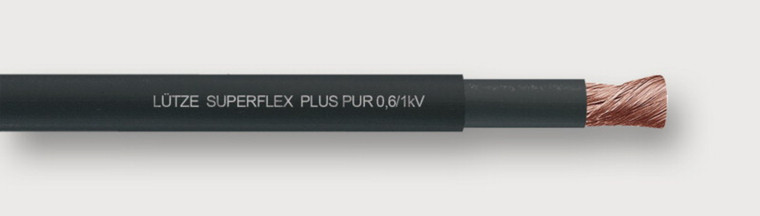

Lutze 111126 su plus pur ul 0,6/1 kv

(No reviews yet) Write a Review
SKU:
111126
Condition:
New
  • Lutze 111126 su plus pur ul 0,6/1 kv
  • Lutze 111126 su plus pur ul 0,6/1 kv
$4.17

Description

Technical Data

Construction

Description
SUPERFLEX?? PLUS PUR 0.6/1 kV
Number of conductors/cross-section
1??10
Jacket material
PUR
Jacket color
black RAL 9005
Outer ??
8,4 mm
Outer ??
0,331 inch
Surface
  • adhesion-free
  • matt
Weight
13,8 kg/100 m
Weight
93 Lbs/Mft
Cu-Index
9,3 kg/100 m
Cu-Index
62 Lbs/Mft

Element 1

Element construction
1??10
Conductor
CU-wire bare
Conductor category
  • IEC 60228, Class 6
  • Superfinely stranded DIN VDE 0295
  • class 6
Conductor marking
black
Conductor insulation
Special TPE

overall construction

Jacket characteristics
  • Flame-retardant
  • Oil resistant
  • grease-resistant
  • petrol-resistant (alcohol-free)
  • kerosene-resistant
  • Silicone-free
  • Halogen free

Technical data

Rated voltage U0/U
1000 V
Rated voltage
1000 V
Test voltage type
AC3000V
Temperature range moving
-25 ???C ?? +80 ???C
Temperature range fixed
-40 ???C ?? +80 ???C
Minimum bending radius moving
7.5??D
Minimum bending radius fixed
4??D

Element 1

Element construction
1??10
Operating capacitance wire-wire
455 pF/m

Approvals/Standards

Approvals
cURus
UL style
AWM 10587
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
  • IEC 60332-1
  • DIN EN 60332-1-2
  • VDE 0482 322-1-2
  • UL 1581
  • UL FT1
Oil resistant according to
  • UL 4d100C
  • VDE 0282 T 10
  • DIN EN 60811-2-1
Halogen free according to
  • DIN EN 60754-1
  • IEC 60754-1

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU

Performance conductor, specifically for machine and device engineering, transport and conveyor technology As motor supply or grounding cable Due to full PUR jacket and TPE conductor insulation optimally suited for c-tracks, extremely rough operating conditions and aggressive coolants and lubricants Especially for industrial environments, machines and plants
