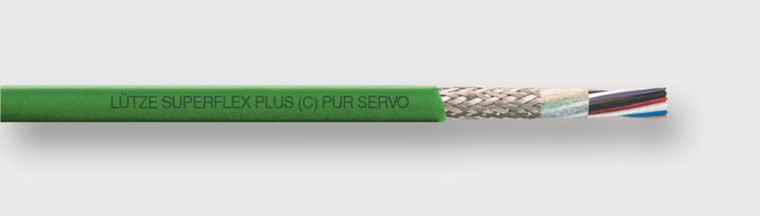

SUPERFLEX???? PLUS (C) PUR FEEDBACK
Number of conductors/cross-section
(4?????0.5+4?????2?????0.38)
Jacket material
PUR
Jacket color
green RAL 6018
Outer ??
9,4 mm
Outer ??
0,37 inch
Surface
- adhesion-free
- matt
Weight
13,2 kg/100 m
Weight
89 Lbs/Mft
Cu-Index
8,6 kg/100 m
Cu-Index
58 Lbs/Mft
Element 1
Element construction
4?????0.5
Conductor
CU-wire bare
Conductor category
- IEC 60228, Class 6
- Superfinely stranded DIN VDE 0295
- class 6
Conductor marking
- white/blue
- white/black
- white/red
- white/yellow
Conductor insulation
Polyolefin
Stranding
- conductors layered construction
- conductors twisted without mechanical stress
- layer pitch optimised
Element 2
Element construction
4?????2?????0.38
Conductor
CU-wire bare
Conductor category
- IEC 60228, Class 6
- Superfinely stranded DIN VDE 0295
- class 6
Conductor marking
- black
- brown
- violet
- blue
- yellow
- green
- red
- orange
Conductor insulation
Polyolefin
Stranding
- conductors stranded in pairs
- conductors twisted without mechanical stress
- layer pitch optimised
overall construction
Overall stranding
elements stranded together
Overall wrapping
Fleece taping
Overall shield
- Braid shield
- Tinned copper wires
- optical cover approx. 85%
Jacket characteristics
- Flame-retardant
- Oil resistant
- grease-resistant
- petrol-resistant (alcohol-free)
- kerosene-resistant
- Silicone-free
- Halogen free
Technical data
Rated voltage
30 V
Test voltage type
AC500V
Temperature range moving
-25 ?????C ??????? +80 ?????C
Temperature range fixed
-40 ?????C ??????? +80 ?????C
Minimum bending radius moving
12?????D
Minimum bending radius fixed
6?????D
Element 1
Element construction
4?????0.5
Insulation resistance at 20 ?????C
200 M?????????km
Operating capacitance wire-wire
65 pF/m
Operating capacitance wire-shield
117 pF/m
Element 2
Element construction
4?????2?????0.38
Operating capacitance wire-wire
56 pF/m
Operating capacitance wire-shield
101 pF/m
Approvals/Standards
Approvals
- cURus
- AWM II A/B
UL style
AWM 20236
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
- IEC 60332-1
- DIN EN 60332-1-2
- VDE 0482 322-1-2
- UL 1581 Part 1080 VW-1
- UL FT1
Oil resistant according to
- UL 1581
- HD 22.10
Halogen free according to
- DIN EN 60754-1
- IEC 60754-1
General
Note
- CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
- * SIEMENS and DRIVE-CLiQ are registered trademarks
Incremental encoder cable, connection cable for tacho sensor, brake sensor, speed sensor Due to Full PUR jacket and TPE conductor insulation optimally suited for c-tracks, extremely rough operating conditions and aggressive coolants and lubricants Especially for industrial environments in mechanical and system engineering
