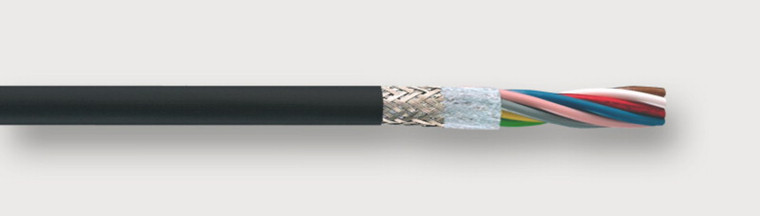

Lutze 117255 superflex tronic as (c) pur ul

(No reviews yet) Write a Review
SKU:
117255
Condition:
New
  • Lutze 117255 superflex tronic as (c) pur ul
  • Lutze 117255 superflex tronic as (c) pur ul

Description

Technical Data

Construction

Description
SUPERFLEX???? TRONIC AS (C) PUR
Number of conductors/cross-section
(5?????0.34)
Jacket material
PUR
Jacket color
black RAL 9005
Outer ??
5,5 mm
Outer ??
0,217 inch
Surface
  • adhesion-free
  • matt
Weight
4,5 kg/100 m
Weight
30 Lbs/Mft
Cu-Index
2,8 kg/100 m
Cu-Index
19 Lbs/Mft

Element 1

Element construction
(5?????0.34)
Conductor
CU-wire bare
Conductor category
  • IEC 60228, Class 6
  • Superfinely stranded DIN VDE 0295
  • class 6
Conductor marking
  • brown
  • white
  • blue
  • black
  • grey
Conductor marking standard
EN 60947-5-2
Conductor insulation
Special TPE

overall construction

Overall stranding
  • conductors layered construction
  • layer pitch optimised
  • conductors twisted without mechanical stress
Overall wrapping
Fleece taping
Overall shield
  • Braid shield
  • Tinned copper wires
  • optical cover approx. 85%
Jacket characteristics
  • low-adhesion
  • abrasion resistant
  • tough
  • tear resistant
  • hydrolysis-resistant
  • microbe resistant
  • rot-resistant
  • Weather resistant
  • ozone-resistant
  • UV resistant (normal lighting conditions)
  • service water-resistant
  • salt water-resistant
  • coolant-resistant
  • lubricant-resistant
  • Oil resistant
  • grease-resistant
  • petrol-resistant (alcohol-free)
  • kerosene-resistant
  • Silicone-free
  • Halogen free

Technical data

Rated voltage
300 V
Test voltage type
AC3000V
Temperature according to UL
80 ?????C
Temperature range moving
-20 ?????C ??????? +80 ?????C
Temperature range fixed
-40 ?????C ??????? +80 ?????C
Minimum bending radius moving
12?????D
Minimum bending radius fixed
6?????D

Element 1

Element construction
(5?????0.34)
Insulation resistance at 20 ?????C
100 M?????????km

Approvals/Standards

Approvals
cURus
UL style
AWM 20549
Conformity
  • CE
  • RoHS
  • REACH
Burning behavior according to
  • DIN EN 60332-2-2
  • UL 1581
  • Horizontal Flame Test
  • UL FT2
Oil resistant according to
DIN EN 60811-2-1
Halogen free according to
  • DIN EN 60754-1
  • IEC 60754-1

General

Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU

Connecting cable for the actuator-sensor technology For continuous flexing use e.g. in c-tracks or free movement in the automation technology, transport and conveyor technology, machine tool manufacture PUR jacket optimally suited for rough operating conditions and aggressive coolants and lubricants
