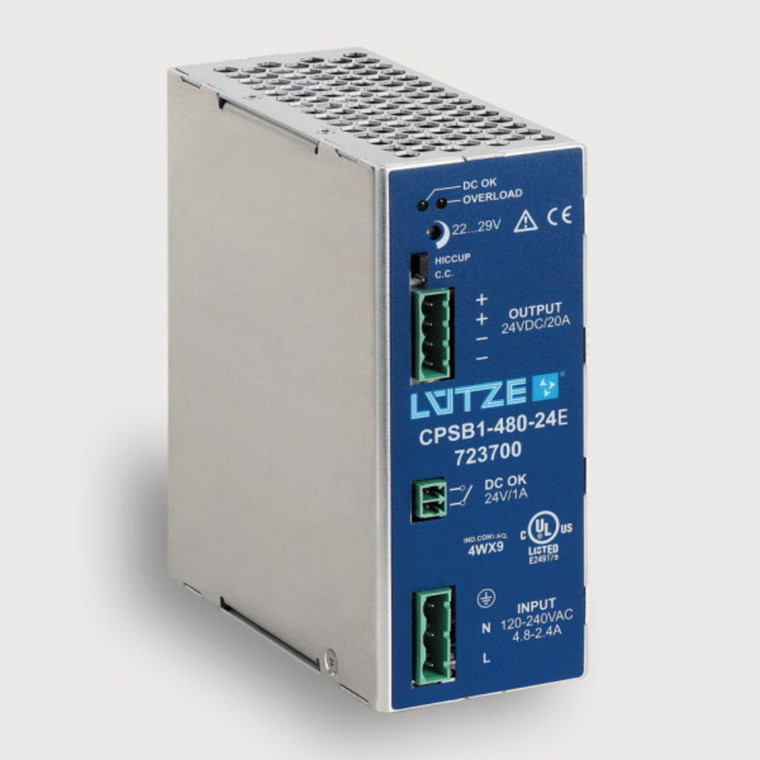

Description
Technical Data
Input
Number of phases
1
Rated voltage UN
AC 120/240 V
Operation voltage range
AC 90???264 V / DC 110???345 V
Line frequency
47???63 Hz
Rated current IN
4.8 A @ AC 120 V / 2.4 A @ AC 240 V
Inrush current
<13 A
Internal fuse
T8 A
External fuse
Mini-circuit breaker: C 16 A, T 10 A
Power Factor Correction P.F.C.
>0,90, enabled
Output
Rated voltage UN
DC24V
Rated current IN
20 A
Max. output current
30 A, 5 s @ Hiccup Mode
Heat dissipation
<36.5 W
Setting range Uout min./Uout max.
22-29 V
Load regulation
<1.5 %
Ripple and Noise
<150 mV pp
Hold up time
>25 ms @ AC 240 V
Status indication DC ON LED green
???21.6 V
Status indication DC LOW LED red
???21.6 V
Parallel / redundant mode
yes/via external decoupling diode e.g. 722999
Efficiency
>93 % @ AC 240 V
Overtemperature protection
yes
Over voltage protection
>DC 33 V (UA=24 V)
Short circuit
Hiccup Mode
Monitoring
DC ON Control (Rdy)
N/O contact
Switching voltage
AC/DC 300 V / DC 150 V
Switching current
AC/DC 1 A
Switching capacity
300 VA / 30 W
Isolation voltage
AC 500 V
General
Insulation voltage input / output
DC 4.2 kV, 1 min.
Insulation voltage input / ground
DC 2.2 kV, 1 min.
Insulation voltage output / ground
DC 750 V, 1 min.
Derating
>50 ???C: -7.6 W/???C @ 120 V, -7.2 W/???C @ 240 V
Operation temperature range
-20 ???C ??? +70 ???C (Derating)
Storage temperature range
-25???C???85???C
Cooling
Air convection, 50 mm distance top/bottom, 20 mm side
Housing material
Aluminum
Mounting
- DIN rail mountable TS35
- (EN 60715)
Installation position
vertical
Protection class
IP20 (IEC 529, EN 60529)
Over voltage category
III
Degree of polution
2
Weight
1,1 kg/piece
Connection type
- Screw terminal
- 0.20 mm2 ??? 2.5 mm2
Dimensions (w ?? h ?? d)
56??140??117 mm
Approvals
cULus (E249179)
Standards
- EN 60950
- EN 50178
- EN 50082-2
- EN 55011 Class B
- EN 55022 Class B
- EN 60529
- EN 61000-4-2/3/4/5/6/11
- IEC 60068-2-27
- EN 61000-3-2
PU
1 piece
Dimensions
