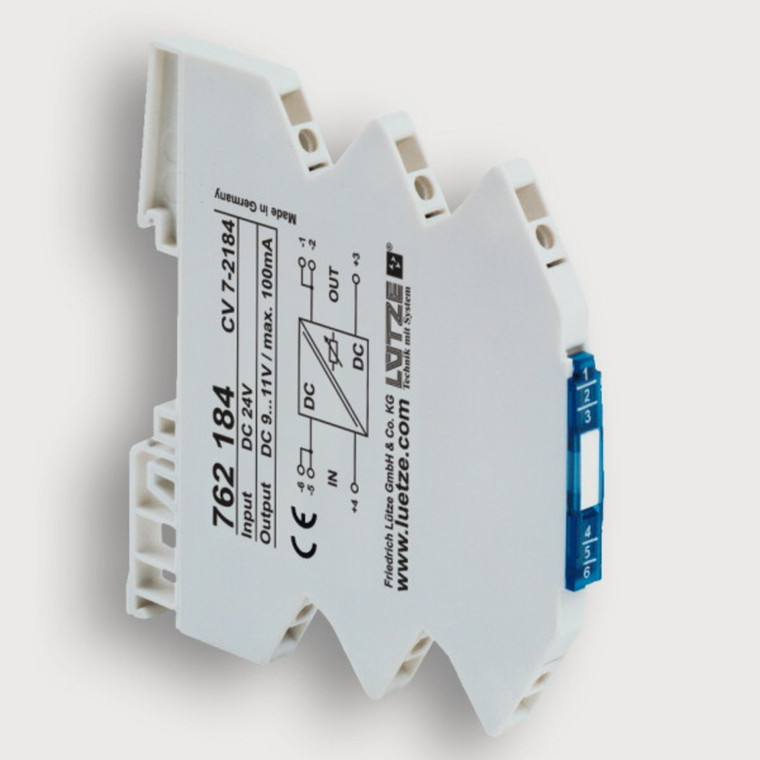

Description
Technical Data
Input
Rated voltage UN
DC 24 V
Operation voltage range
DC 16.8??30 V
Rated current IN
15 mA
Status display input
LED
Output
Rated voltage UN
DC 5 V/9 V
Rated current IN
0,1 A
Short-circuit current
<900 mA
Setting range Uout min./Uout max.
??ñ0.5 V /??ñ 1.0 V via potentiometer
Load regulation
<1 %
Rise time
<10 ms
Ripple and Noise
<10 mVeffeff
Parallel / redundant mode
No
Short circuit
Current limit
General
Insulation voltage input / output
1.5 kVeff
Rated insulation voltage (EN 50178)
50 V
Operation temperature range
-25 ???C ?? +60 ???C
Storage temperature range
-40???C??85???C
Cooling
Air convection
Housing material
PA
Mounting
- DIN rail mountable TS35
- (EN 60715)
Installation position
any
Protection class
IP20 (IEC 529, EN 60529)
Over voltage category
I
Degree of polution
2
Weight
0,04 kg/piece
Connection type
- Screw terminal
- 0.14 mm2 ?? 1.5 mm2
Dimensions (w ?? h ?? d)
6,2??90??92,5 mm
PU
1 piece
Accessories
- Jumper comb 6 A, red: 2-pin: Part-No. 762802 | 3-pin: Part-No. 762805 | 4-pin: Part-No. 762812 | 8-pin: Part-No. 762822 | 16-pin: Part-No. 762832 | PU: 10 units
- Jumper comb 6 A, white: 2-pin: Part-No. 762803 | 3-pin: Part-No. 762806 | 4-pin: Part-No. 762813 | 8-pin: Part-No. 762823 | 16-pin: Part-No. 762833 | PU: 10 units
- Jumper comb 6 A, blue: 2-pin: Part-No. 762804 | 3-pin: Part-No. 762807 | 4-pin: Part-No. 762814 | 8-pin: Part-No. 762824 | 16-pin: Part-No. 762834 | PU: 10 units
- Labelling sign 4??11 mm, white: Part-No. 681313 | BZT-0411 | PU: 100 units
- Insulation plate, black RAL 9005: Part-No. 760809 | TP 7-0809 MIC/SNR | PU: 10 units
- Laser label A4 not punched, black RAL 9005: Part-No. 681031 | LEB A4 PW | PU: 10 units
