Description
Technical Data
Construction
Description

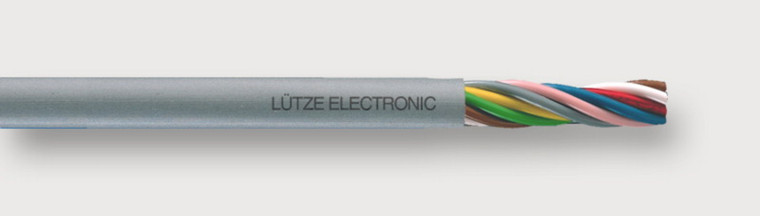

ELECTRONIC PLTC PVC
Number of conductors/cross-section
15?????AWG22
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ?????
8,1 mm
Outer ?????
0,318 inch
Weight
70 Lbs/Mft
Cu-Index
35 Lbs/Mft
Element 1
Element construction
AWG22/15C
Conductor construction
AWG 22 (19/34)
Conductor
- AWG conductor
- CU-wire tin-plated
Conductor category
fine wire
Conductor marking
- black
- brown
- red
- orange
- yellow
- green
- blue
- violet
- grey
- white
- white/black
- white/brown
- white/red
- white/orange
- white/yellow
Conductor insulation
SR-PVC
overall construction
Jacket characteristics
- Flame-retardant
- Oil resistant
- Silicone-free
Technical data
Rated voltage UL
300 V
Temperature range fixed
-25 ???C ?? +105 ???C
Minimum bending radius fixed
4?????D
Element 1
Element construction
AWG22/15C
Approvals/Standards
Approvals
- cULus
- PLTC
- UL Type CM
- cURus
- AWM II A/B
- NEC 725, 760, 800
- Class 1 Div. 2 (PLTC use only)
UL style
AWM 2464
Conformity
- CE
- REACH
- RoHS
Burning behavior according to
- UL VW-1
- UL FT4
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Industrial grade PLTC electronic cable for machine tools, process instrumentation and controls, computer peripherals, HVAC technology, assembly and production lines, low voltage interconnect and other industrial applications including installation in cable trays
