Description
Technical Data
Construction
Description

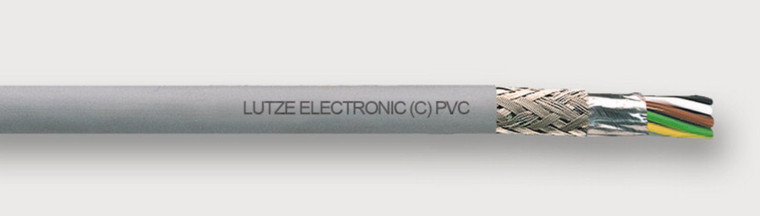

ELECTRONIC (C) PLTC PVC
Number of conductors/cross-section
2?????AWG16
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ?????
7,3 mm
Outer ?????
0,288 inch
Weight
59 Lbs/Mft
Cu-Index
32 Lbs/Mft
Element 1
Element construction
AWG16/2C
Conductor construction
AWG 16 (26/30)
Conductor
- AWG conductor
- CU-wire tin-plated
Conductor category
fine wire
Conductor marking
- black
- red
Conductor insulation
SR-PVC
overall construction
Drain wire
CU-wire tin-plated
Overall shield
- Aluminium laminate
- Foil shield
- Braid shield
- Tinned copper wires
Jacket characteristics
- Flame-retardant
- Oil resistant
- Silicone-free
Technical data
Rated voltage UL
300 V
Temperature range fixed
-40 ???C ?? +105 ???C
Minimum bending radius fixed
4?????D
Element 1
Element construction
AWG16/2C
Approvals/Standards
Approvals
- cULus
- PLTC
- UL Type CM
- cURus
- AWM II A/B
- NEC 725, 760, 800
- Class 1 Div. 2 per NEC
- Art. 336, 392, 501, 502
- (PLTC use only)
UL style
AWM 2464
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
- UL VW-1
- UL FT4
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
