Description
Technical Data
Construction
Description

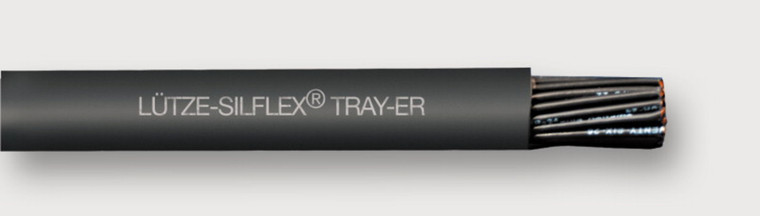

SILFLEX?? TRAY-ER PVC
Number of conductors/cross-section
4??AWG6
Jacket material
PVC
Jacket color
black RAL 9005
Element 1
Element construction
AWG6/4C
Conductor
- AWG conductor
- CU-wire bare
Conductor category
fine wire
Conductor marking
- black
- with white number print
- green/yellow
Conductor insulation
PVC/Nylon
overall construction
Jacket characteristics
- Oil resistant
- UV resistant (normal lighting conditions)
- Silicone-free
Technical data
Rated voltage UN
- 600 V TC-ER
- 1000 V WTTC
Temperature range fixed
-40 ???C ????? +90 ???C
Minimum bending radius fixed
4??D
Element 1
Element construction
AWG6/4C
Approvals/Standards
Approvals
- TC-ER
- cURus
- cULus
- UL Type MTW or DP-1
- WTTC
- Meets NEC 336,392
- Class I & II, Div. 2
- Class 1 Div. 2 per NEC
- 501, 502, 505
- cUL TC
- CIC FT4
- UL 1277
UL style
AWM 20886
Conformity
- CE
- REACH
- RoHS
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Multi-conductor cable for tray applications, with exposed run (open wiring) approval Compliant with NFPA 79 for machine tool wiring TC-ER for use with cable trays without conduit, which can reduce material and labor costs Machine tools, machine and plant construction, HVAC technology, assembly and production lines, and other industrial applications WTTC ????? wind turbine tray cable rating for use in wind power generation Dry, damp and wet conditions
