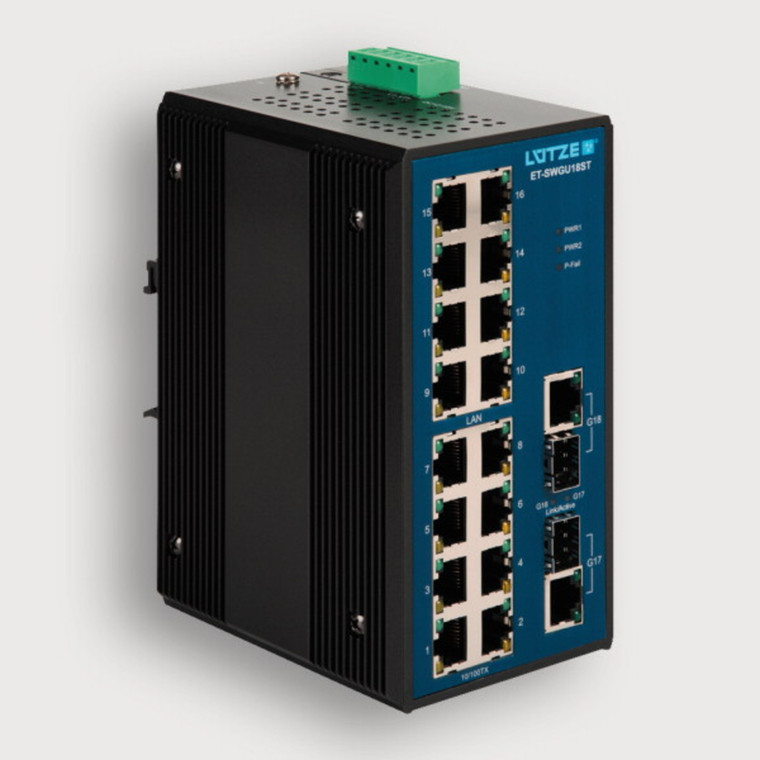

Lutze LPM12G locknut plastic m12
LutzeTechnical Data
Communication
Standard
IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z
LAN
100 Base-TX, 10 / 1000 Base-T, 1000 Base-SX/LX/LHX/XD/ZX/EZX
Cable length (segment)
Max. 100 m (4-wire Cat.5e, Cat.6 RJ45 cable)
Transfer rate
Ethernet: 10/100 Mbit/s, Gigabit Chopper: 10/100/1000 Mbit/s
Connection technology (data)
16 RJ45 + 2 RJ45/SFP (mini GBIC)
Status display communication
PWR1, PWR2, P-Fail, Gigabit Chopper: Link/Activity, Speed (1000MBps), Gigabit SFP: Link/Activity
Safety
ESD (Ethernet)
DC 4 kV
Surge (EFT for power)
DC 3 kV
Reverse voltage protection
Yes
Rated over load protection
3.5 A @ DC 12 V
Monitoring
Power supply voltage
monitoring
monitoring
Relay, 1 normally open
Switching voltage
AC 120 V / DC 28 V
Switching current
1 A @ DC 24 V
Isolation voltage
DC 500 V
General
Operation voltage range
DC 12????48 V, redundant
Power consumption
6.5 W
Protection class
IP20
Relative humidity (operation)
5 % - 95 % (non-condensing)
Relative humidity (storage)
0 % - 95 % (non-condensing)
Operation temperature range
-10 ???C ???? +60 ???C
Storage temperature range
-40???C????85???C
Dimensions (w ????? h ????? d)
79?????152?????105 mm
Weight
1,1 kg/piece
Housing material
Metal
Mounting
- DIN rail mountable TS35
- (EN 60715)
Installation position
any
Connection type
- Screw terminal
- plug-in
- 0.20 mm2 ???? 2.5 mm2
Standards
- UL 60950-1
- CAN/CSA-C22.2 No. 60950
- USA-FCC Part 15 CISPR22
- EN 55011
- EN 55022 Class A
- EN 61000-3-2/3
- EN 55024
- IEC 61000-4-2/3/4/5/6/8
- EN 61000-6-2
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
Approvals
- cULus
- CE
- FCC
PU
1 piece
Note
For more information on LED definition, see the data sheet.
