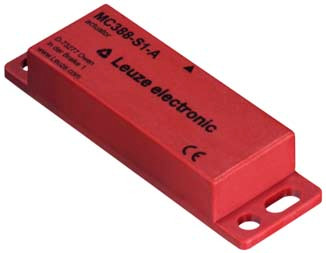

Leuze MC388-S1-A Industrial Sensor System
Leuze
$19.00
The MC388-S1-A is a precision industrial sensor engineered for demanding automation applications. Featuring IP-rated protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Operating temperature: -20...70 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model MC388-S1-A). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Design:
- Cubic
- Dimension (W x H x L):
- 25 mm x 13 mm x 88 mm
- Housing material:
- Plastic
- Plastic housing:
- Glass fiber reinforced (PPS), self-extinguishing
- Net weight:
- 46 g
- Housing color:
- Red
- Type of fastening:
- Through-hole mounting
- Distance to other magnetic sensors, min.:
- 50 mm
- Ambient temperature, operation:
- -20 ... 70 °C
- Customs tariff number:
- 85051990
- ECLASS 5.1.4:
- 27279217
- ECLASS 8.0:
- 27279217
- ECLASS 9.0:
- 27272404
- ECLASS 10.0:
- 27272404
- ECLASS 11.0:
- 27272404
- ECLASS 12.0:
- 27274002
- ECLASS 13.0:
- 27274002
- ECLASS 14.0:
- 27274002
- ECLASS 15.0:
- 27274002
- ETIM 5.0:
- EC001487
- ETIM 6.0:
- EC001487
- ETIM 7.0:
- EC001487
- ETIM 8.0:
- EC001487
- ETIM 9.0:
- EC001487
- ETIM 10.0:
- EC001487
- Datasheet:
- View
- Brochure:
- View
