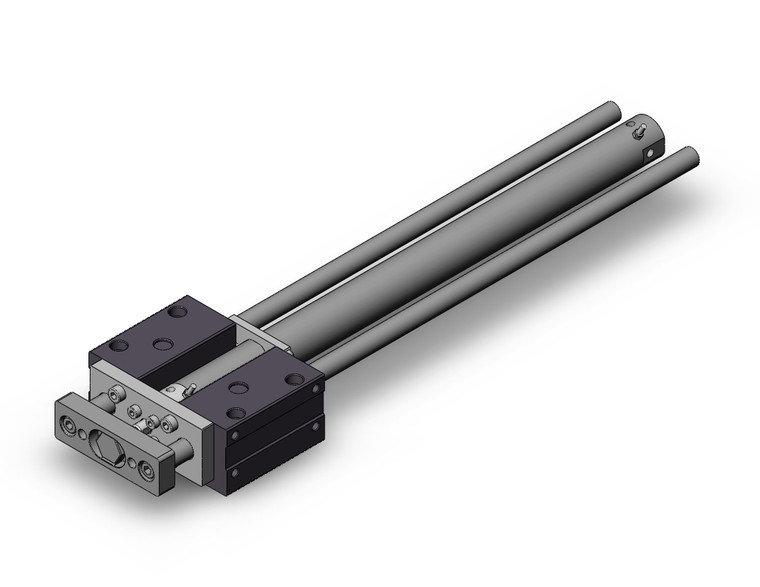

SMC MGCLB20-300 MGC Series Guide Cylinder Compact Type
SMC
$316.60
SMC MGCLB20-300 - MGC Series Compact Guide Cylinder, Ball Bushing, 20mm Bore, 300mm Stroke
The SMC MGCLB20-300 provides an extended 300mm stroke in the 20mm bore class, making it a versatile choice within the MGC Series compact guided cylinder lineup. Ball bushing bearings and external guide rods deliver smooth, stable guided motion for longer-reach applications.
Key Features & Specifications
- Ball bushing bearing (L-type) - ensures smooth operation with stable travel resistance across the full 300mm stroke
- External guide rods - isolate the piston rod and seals from lateral loads
- Air cushions as standard - absorb impact energy at end of stroke to protect machinery
- Non-rotating accuracy: ±0.07° for 20mm bore size
- Compact guide body with integrated front plate for space-efficient mounting
- Bore Size: 20mm | Stroke: 300mm | Rear Plate (B) Mount
Typical Applications
Ideal for extended-reach automation tasks including part transfers, guided insertion, and lifting operations where a compact 20mm bore with longer stroke is required.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 300 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- Without rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
