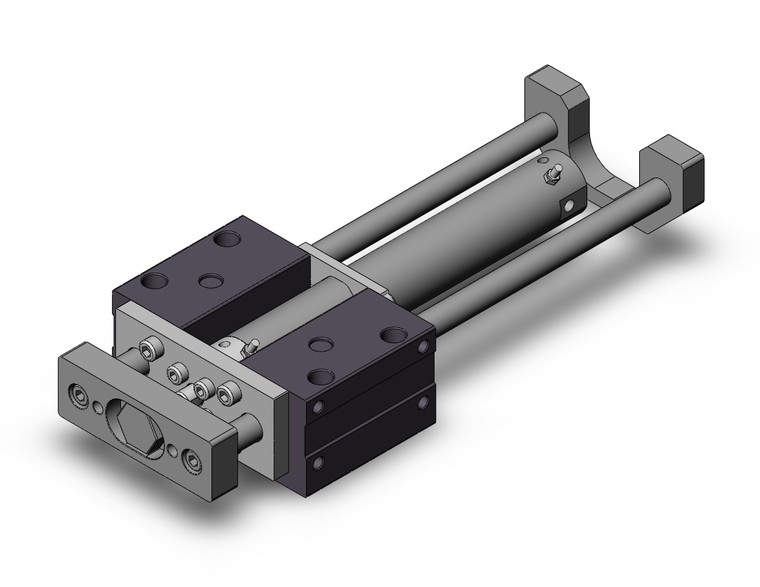

SMC MGCLB25-150-R Mgc, Guide Cylinder

SMC MGCLB25-150-R MGC Series Guide Cylinder Compact Type

SMC
SKU:
MGCLB25-150-R
Availability:
Factory stock
$346.15
Condition:
New
Current Stock:
Description

SMC MGCLB25-150-R - MGC Series Compact Guide Cylinder, Ball Bushing, 25mm Bore, 150mm Stroke, Rubber Bumper

The SMC MGCLB25-150-R combines a 25mm bore and 150mm stroke with a rubber bumper (-R) for controlled deceleration at end of stroke. This MGC Series compact external guided cylinder uses ball bushing bearings and rear plate mounting for reliable guided actuation.

Key Features & Specifications

  • Rubber bumper (-R) - gentle end-of-stroke contact for impact-sensitive processes
  • High-precision ball bushings - consistent, smooth travel across the full stroke
  • External guide rod isolation - extends seal life by deflecting side loads
  • Standard air cushions - maximum energy absorption at stroke end
  • Non-rotating accuracy: ±0.07° (25mm bore)
  • Bore Size: 25mm | Stroke: 150mm | Rear Plate (B) Mount | Rubber Bumper

Typical Applications

Designed for automated assembly, inspection, and packaging systems requiring moderate force with smooth, cushioned stroke-end performance and compact installation.

Manufactured by SMC Corporation.

Additional Information
Type:
None
Bearing Type:
Ball Bushing Bearing
Mounting Style:
Basic Style
Bore Size:
Bore Size 25 mm
Port Thread Type:
M5X0.8,Rc
Cylinder Stroke:
Standard Stroke 150 mm
Stroke Adjustment Symbol:
None
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Rear Plate:
With rear plate
Auto Switch:
Without Auto Switch
Number Of Auto Switches:
2 pcs. Or None
Auto Switch Mounting Bracket:
None
Made To Order:
Standard
