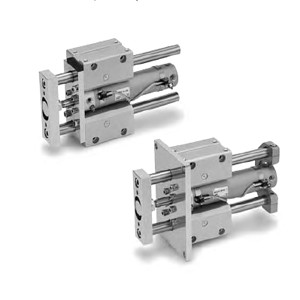

SMC MGCLB32-125-R MGC Series Guide Cylinder Compact Type
SMC
$382.00
SMC MGCLB32-125-R - MGC Series Compact Guide Cylinder, Ball Bushing, 32mm Bore, 125mm Stroke, Rubber Bumper
The SMC MGCLB32-125-R steps up to a 32mm bore with a 125mm stroke, delivering higher force output for mid-duty guided actuation tasks. The rubber bumper (-R) option provides controlled deceleration, reducing end-of-stroke impact and mechanical noise.
Key Features & Specifications
- 32mm bore - delivers significantly greater actuating force than 20mm and 25mm bore sizes
- Rubber bumper (-R) - soft stroke-end contact for impact-sensitive tooling and fixtures
- Ball bushing bearings - high-precision guided motion with stable travel resistance
- External guide rods - load isolation from piston rod seals for extended life
- Air cushions standard - kinetic energy absorption at end of stroke
- Bore Size: 32mm | Stroke: 125mm | Rear Plate (B) Mount | Rubber Bumper
Typical Applications
Suitable for pressing, clamping, guided transfer, and lifting in automated assembly and packaging where higher force and controlled end-of-stroke behavior are required in a compact footprint.
Manufactured by SMC Corporation.
- Type:
- None
- Bearing Type:
- Ball Bushing Bearing
- Mounting Style:
- Basic Style
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M5X0.8,Rc
- Cylinder Stroke:
- Standard Stroke 125 mm
- Stroke Adjustment Symbol:
- None
- Dual Stroke Mark:
- Without Two Stroke Mark
- Cylinder Stroke 2:
- Without Cylinder Stroke 2
- Rear Plate:
- With rear plate
- Auto Switch:
- Without Auto Switch
- Number Of Auto Switches:
- 2 pcs. Or None
- Auto Switch Mounting Bracket:
- None
- Made To Order:
- Standard
