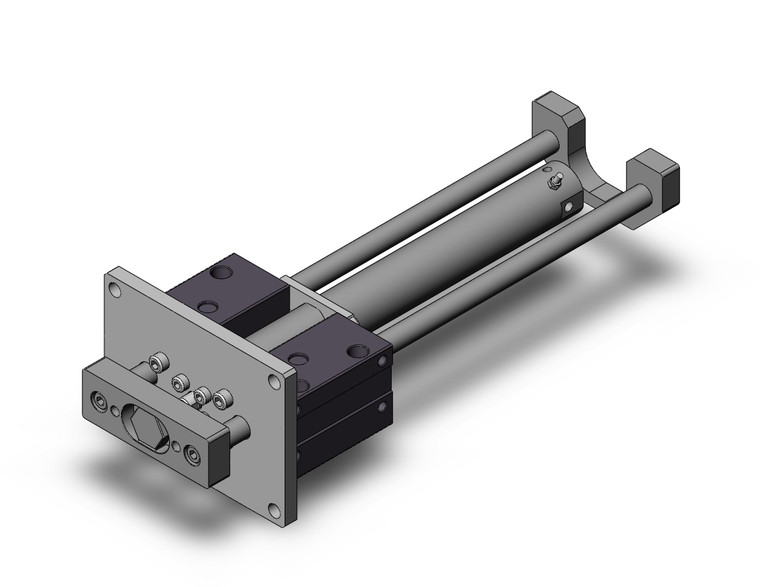

SMC MGCLF25-200-R Mgc, Guide Cylinder

SMC MGCLF25-200-R MGC Series Guide Cylinder Compact Type

SMC
SKU:
MGCLF25-200-R
Availability:
Factory stock
$370.60
Condition:
New
Current Stock:
Description

SMC MGCLF25-200-R - MGC Series Compact Guide Cylinder, Ball Bushing, Flange Mount, 25mm Bore, 200mm Stroke, Rubber Bumper

The SMC MGCLF25-200-R features a flange (F) mounting configuration, differentiating it from the rear plate (B) variants in the MGC Series. With a 25mm bore, 200mm stroke, and rubber bumper (-R), it provides versatile mounting options for guided actuation in space-constrained designs.

Key Features & Specifications

  • Flange (F) mount - front flange mounting enables flexible integration into diverse machine frames
  • Rubber bumper (-R) - cushioned end-of-stroke contact minimizes impact and wear
  • Ball bushing (L-type) bearings - smooth, high-precision guided linear motion
  • External guide rods - isolate lateral loads from piston rod seals
  • Air cushions standard - kinetic energy absorption at end of stroke
  • Bore Size: 25mm | Stroke: 200mm | Flange (F) Mount | Rubber Bumper

Typical Applications

Ideal for applications requiring front-mount guided actuation such as robotic end-of-arm tooling, inspection station actuators, and automated press-fit operations.

Manufactured by SMC Corporation.

Additional Information
Type:
None
Bearing Type:
Ball Bushing Bearing
Mounting Style:
Flange Style
Bore Size:
Bore Size 25 mm
Port Thread Type:
M5X0.8,Rc
Cylinder Stroke:
Standard Stroke 200 mm
Stroke Adjustment Symbol:
None
Dual Stroke Mark:
Without Two Stroke Mark
Cylinder Stroke 2:
Without Cylinder Stroke 2
Rear Plate:
With rear plate
Auto Switch:
Without Auto Switch
Number Of Auto Switches:
2 pcs. Or None
Auto Switch Mounting Bracket:
None
Made To Order:
Standard
