SMC MGF100-100 Guided Cylinder

(No reviews yet) Write a Review
SKU:
MGF100-100
Condition:
New
Availability:
In stock: 12
Auto Switch:
No Switch
Stroke:
100mm
Port Thread:
Rc
Bore Size:
100mm
$1,214.90

Description

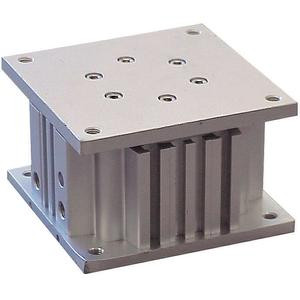

MGF, Low Profile Guide Table

The MGF low profile guide table integrates a compact cylinder to a large diameter concentric guide sleeve to handle loads applied from any direction providing equal eccentric load resistance through 360 . Using the guide sleeve instead of guide rods reduces the unit s weight by 15% and eliminates eccentric load capacity variances caused by load orientation. An internal non-rotating pin has been added to prevent rotation of the top plate.
-

- Bore sizes: 40, 63, 100 mm
- Stroke lengths: 30, 50, 75, 100
- Non-rotating accuracy +/-0.08 for 40 mm bore
- Non-rotating accuracy +/-0.06 for 63 mm bore
- Non-rotating accuracy +/-0.05 for 100 mm bore
- Auto switch capable
-

Series Catalog

AutoCAD File

View AllClose
