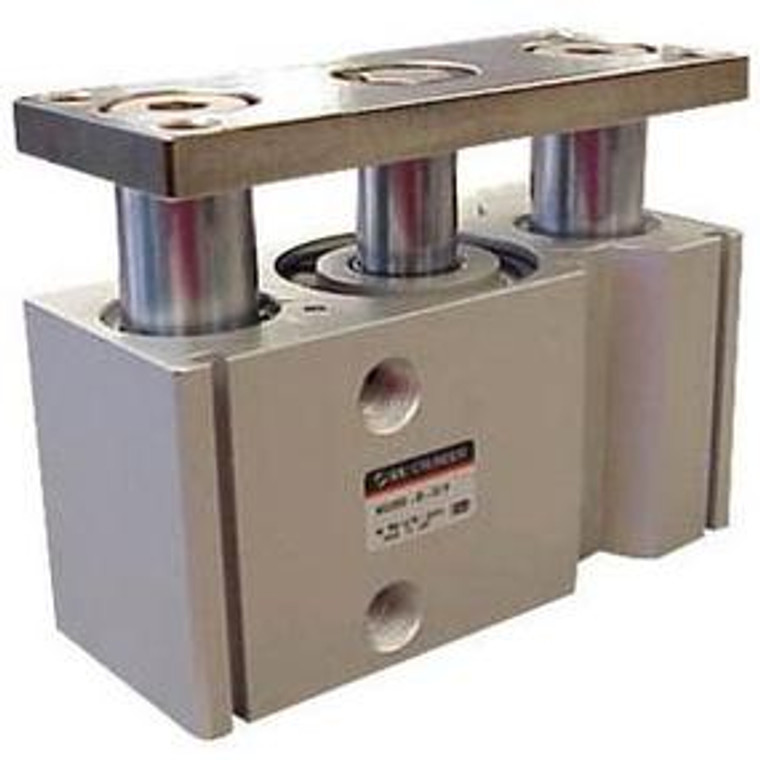

SMC MGQM16-40-Y59AL MGQ Series Compact Guide Cylinder
SMC
$227.95
The SMC MGQM16-40-Y59AL MGQ Series Compact Guide Cylinder is a versatile air cylinder designed to deliver exceptional performance in industrial applications. This compact guide cylinder integrates a robust guide mechanism that enhances lateral load resistance, ensuring stability and precision in operations. Its high non-rotating accuracy makes it an ideal choice for applications requiring precise linear motion. Perfectly suited for use as a stopper or lifter in conveyor lines, this cylinder offers reliable and efficient performance, making it an essential component in automated systems.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 16 mm
- Port Thread Type:
- M5X0.8(?12-16)
- Cylinder Stroke:
- Standard Stroke 40 mm
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 3-wire (NPN), In-line, Lead Wire :3m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
