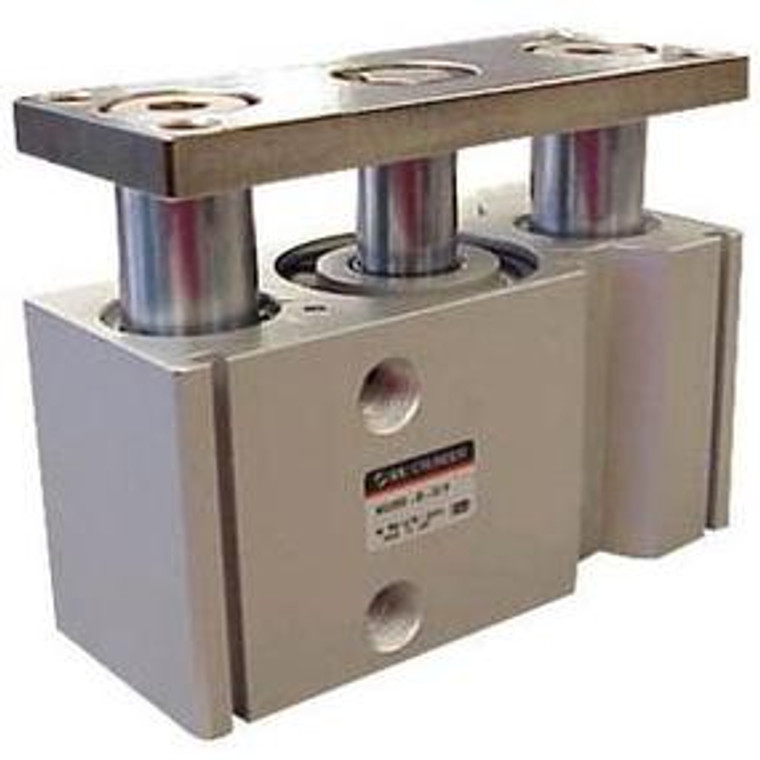

SMC MGQM32-25-Y7BWL MGQ Series Compact Guide Cylinder
SMC
$348.75
The SMC MGQM32-25-Y7BWL MGQ Series Compact Guide Cylinder is a highly efficient air cylinder designed to deliver exceptional performance in industrial applications. This compact guide cylinder is engineered with an integrated guide, providing superior lateral load resistance and ensuring high non-rotating accuracy. It is particularly suitable for use as a stopper or lifter in conveyor lines, offering reliable and precise operation. With its robust construction and advanced design, the MGQ Series Compact Guide Cylinder is an ideal choice for enhancing the efficiency and accuracy of your conveyor systems.
- Bearing Type:
- Slide Bearing
- Bore Size:
- Bore Size 32 mm
- Port Thread Type:
- M5X0.8(?12-16)
- Cylinder Stroke:
- Standard Stroke 25 mm
- Auto Switch:
- 2-color Indicator, Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
