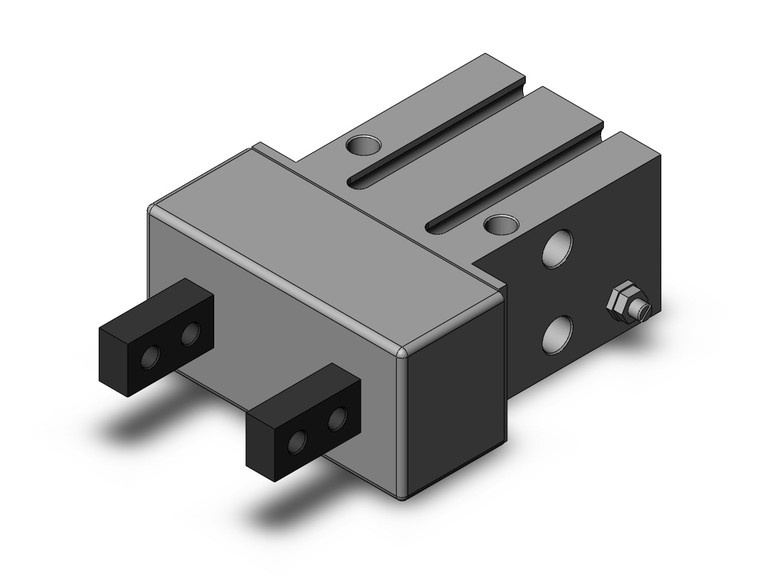

SMC MHK2-16DF Gripper
- SKU:
- MHK2-16DF
- Condition:
- New
- Availability:
- In stock: 4
- Finger Stroke:
- Standard
- Bore Size:
- 16mm
- Action:
- D (Double Acting)
- Finger Material:
- Carbon Steel
- Dust Cover:
- F [Fluoro Rubber (FKM)]
- Auto Switch:
- No Switch
- Lead Wire or Prewired Connector:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
Description
MHK, Air Gripper, Wedge Cam Operated Slide Guide
The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force. Available in single acting (N.C., N.O.) and double acting as well as with a long stroke option.
- Bore sizes: 12, 16, 20, 25 mm- Built-in adjustment needle for finger speed
- Dust covers: chloroprene rubber, fluororubber, silicone rubber
- High repeatability: 0.01 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
-
